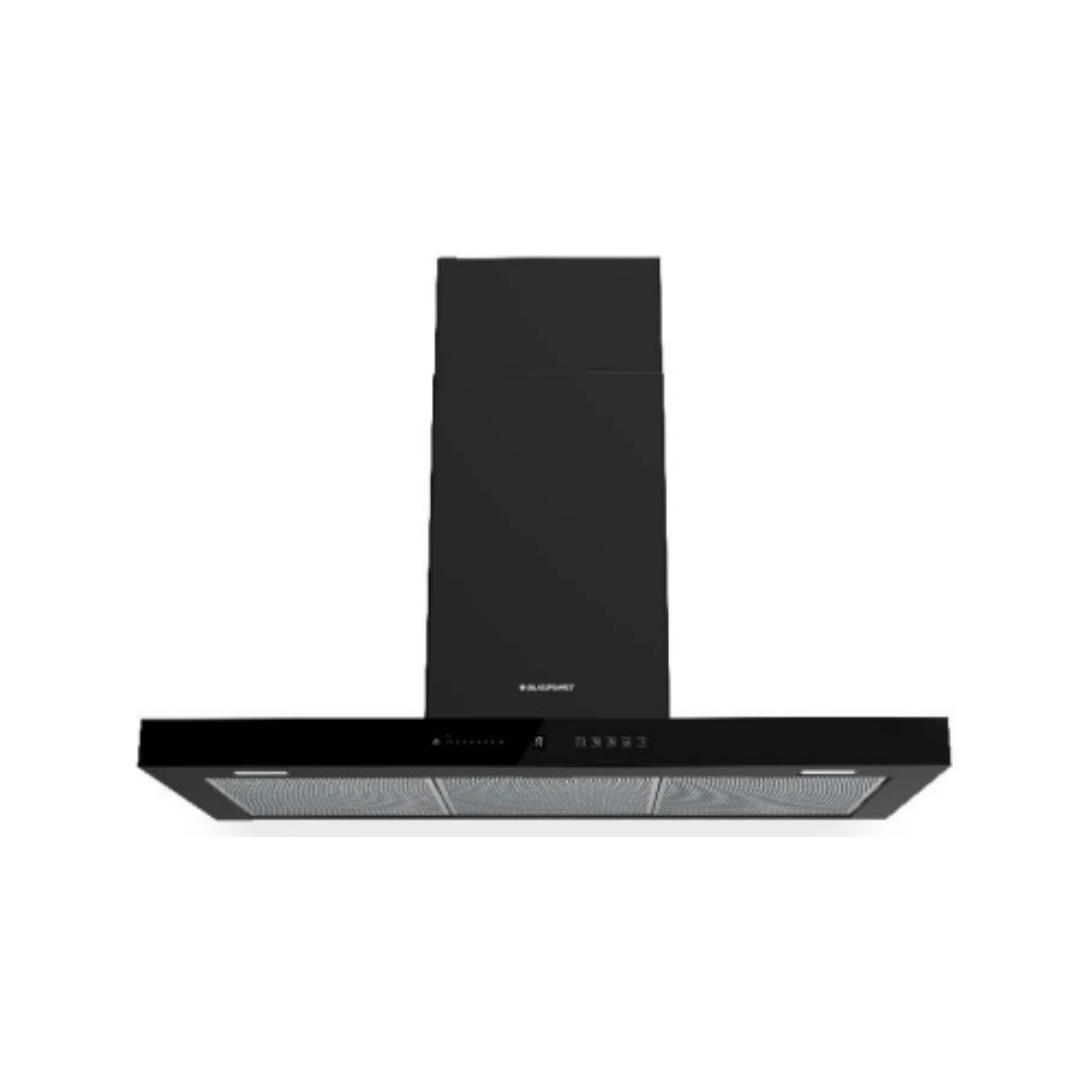

Blaupunkt By Hettich Wall Mounted Chimney 90 cm 5DS 69770, Intensive Level, Touch Control, Smart Slider
Couldn't load pickup availability
Warranty & Installation
Warranty & Installation
Installation Process:
Please contact apnidukaan.com support team for the installations
Phone: +91 7028007642
Email: contact@apnidukaan.com
Delivery and Shipping
Delivery and Shipping
Will be shipped and delivered in 6-7 days
7 Day Replacement
Eligible for free replacement only, within 7 days of delivery, in an unlikely event of damaged, defective or wrong item is delivered to you.
Wall Mounted Chimney 90 cm 5DS 69770, Intensive Level, Touch Contro...
Blaupunkt By Hettich Wall Hood 5DS 69770, Fan Power 3-Level + Intensiv Level, Touch Control - Smart Slider
- Auto Clean : No
- Filterless : No
- Light : 2×2W
- Controls : Electronic
- Motor Power : 274 W
- Installation Type : wall installation above hobs
-
Knob Control : Metal grease filter, dishwasher-safe
• Incl. exhaust air shaft -
Accessories : Metal grease filter, dishwasher-safe
• Incl. exhaust air shaft
Elevate your kitchen with Blaupunkt’s minimalist wall hood, designed to seamlessly integrate into contemporary Indian kitchens. Its sleek design and powerful suction ensure a smoke-free cooking environment.
Technical Details
- Brand: Blaupunkt By Hettich
- Model No.: 5DS 69770
- Output, consumption

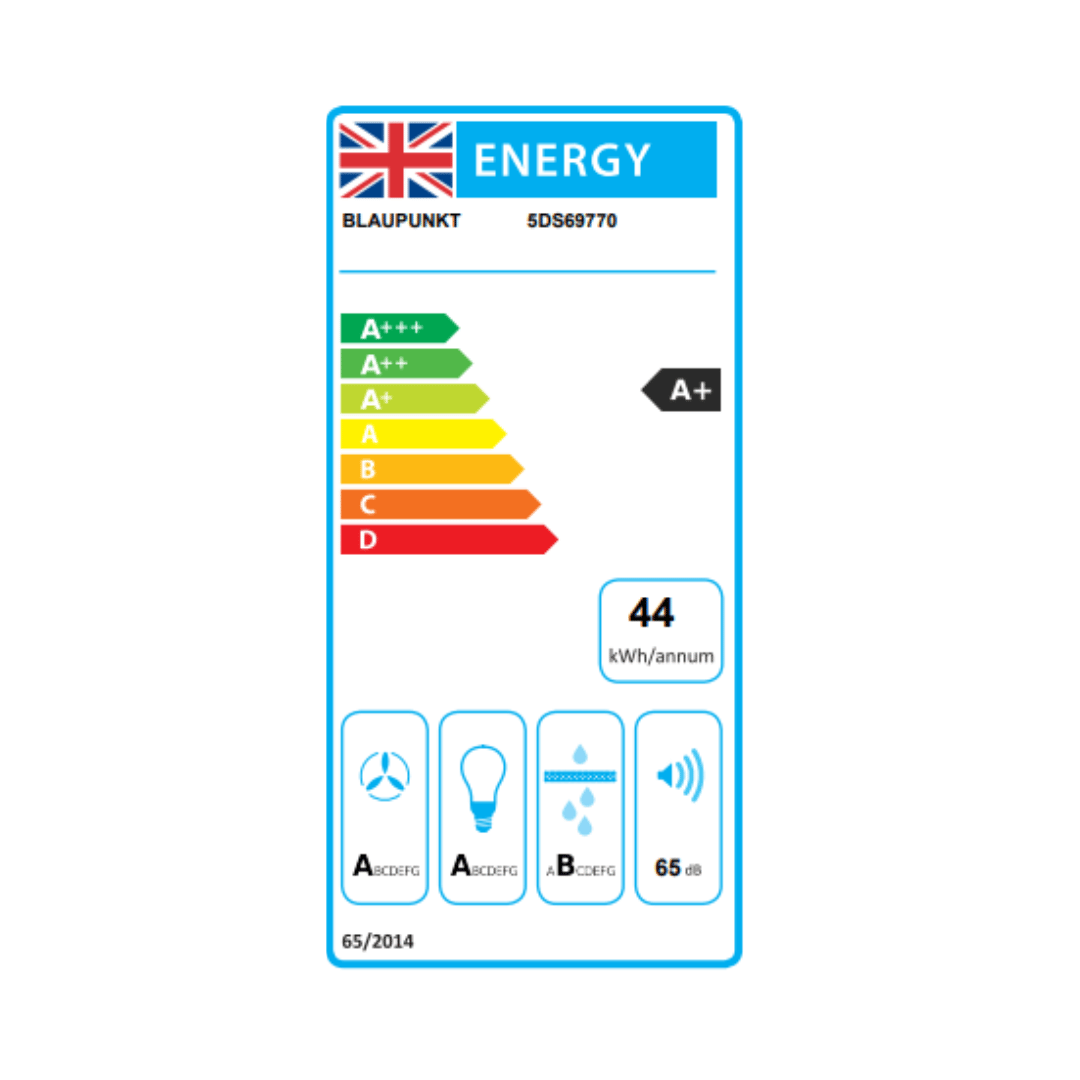

- Energie-Effizienzklasse: A+
- Average energy consumption: 43 kWh / year *
- Fan efficiency class: A
- Lighting efficiency class: A
- Grease filter efficiency class: B
- Total connected load: 274 W
- Voltage: 220 - 240V
- noise min./max. Normal level:: 66 /69 dBA in
- Max
- fan power max. Normal Level:
- - with exhaust air operation max(m3/h): 580
- - with recirculation mode max.(m3/h): 450
- fan power max. Normal Level:
- - with exhaust air operation intensiv(m3/h): 700
- -with recirculation mode intensiv (m3/h): 500
- Equipment / comfort
- Fan power 3-level +Intensiv level
- Touch Control - Smart Slider
- Even, bright lighting with 2 x 2 W LED lamps
- Illuminance: 180 lux
- Color temperature: 4000 K
- Metal grease filter, dishwasher safe
- Multicontrol: no
- Equipment features
- Device type: T-shape
- Color of the fireplace: Black
- Type: wall
- Approval certificates: CE/UKCA
- Length of connection cable (cm):min 150
- Control: Touch control - Slider
- Regulation of power levels: 4
- Diameter of exhaust air outlet (mm): 150
- Material of grease filter: Aluminum
- Type of air flow: upwards
- Technical data and dimensions (HxBxT)
- Exhaust air: 79,0 106,0 90,0 46,0 cm
- Recigulation air: 79,0 106,0 90,0 46,0 cm
- Appliance dimensions (packed): 637 x 1020 x
- 650 mm
- Net weight (kg): 15,2
- Gross weight (kg): 17,5
- Consumption and connection values:
- Connected load (W):274
- Voltage (V): 220-240
- Frequency (Hz): 50
- Connector type: EU
- Type of installation: wall
- Housing material: housing made of pounded
- steel and glas
- Approval certificates: CE/UCKA

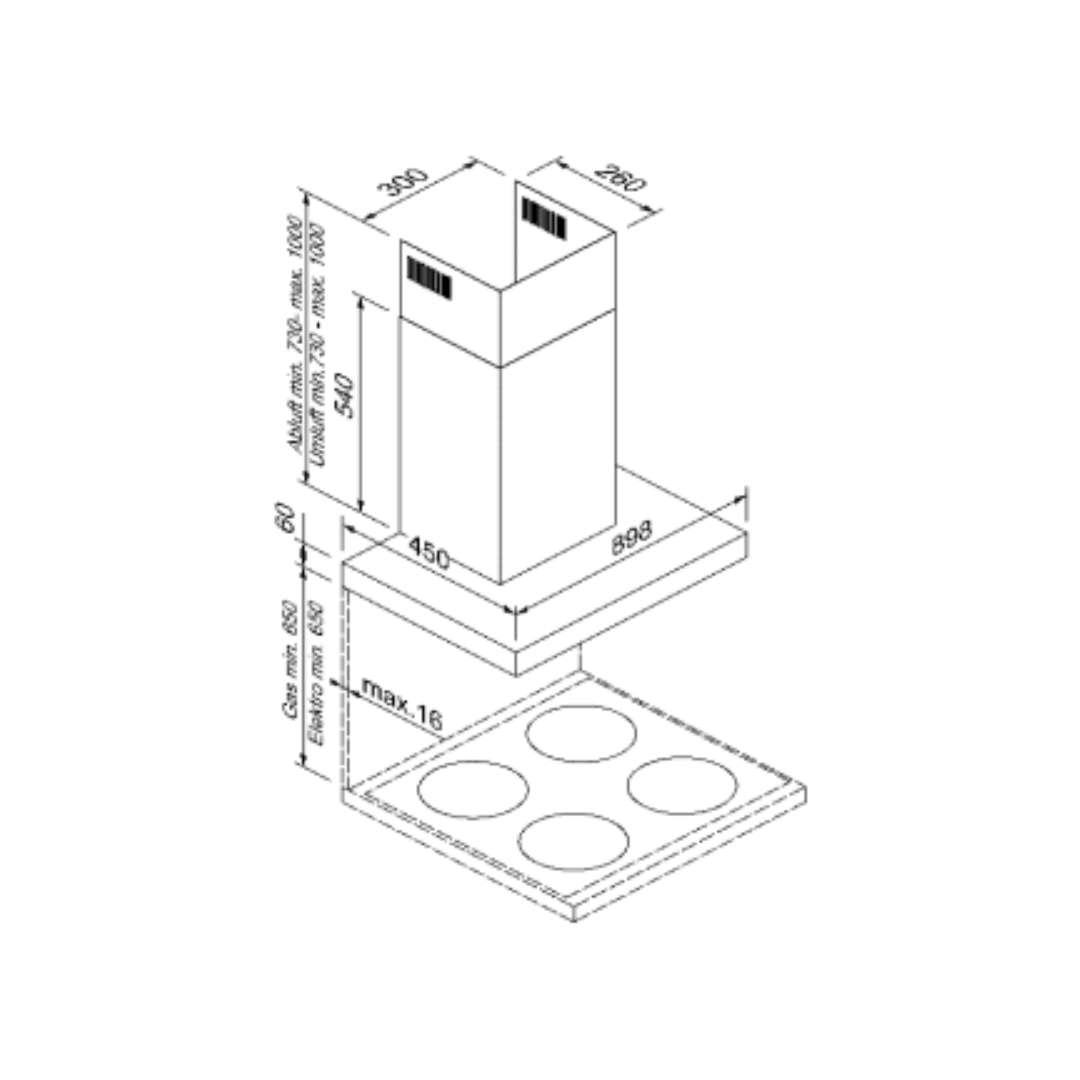

- Required distance between tray / cooker:
- Electric: 650mm, Gas: 650mm
- Position of the blower: motor in the housing
- Optional accessories:

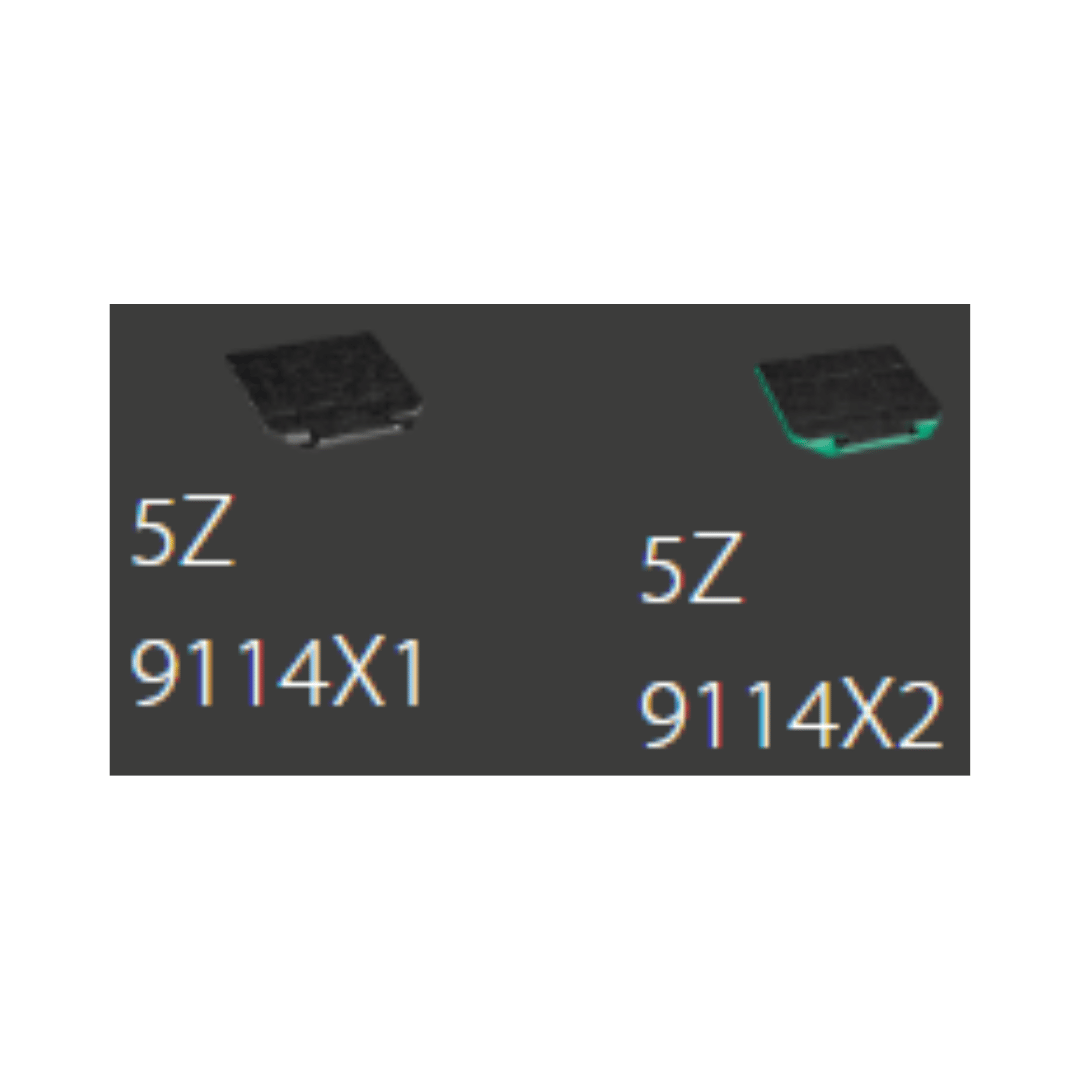

- Charcoal filter Regenerative 5Z9114X1 EG18611
- Charcoal filter 5Z9114X2 EG18081
Additional Information
- Country of Origin: Germany
- Manufacturer: Blaupunkt
- Imported by: Hettich India Private Limited - 302, Durolite House, Opp. SAB TV, New Link Road, Andheri ( West ) Mumbai - 400053
