Technical Details :

• Brand : Bosch
• Model : HBJ534EB0I
• Color / Material Front : Black
• Built-in / Free-standing : Built-in
• Integrated Cleaning system : catalytic partial
• Min. required niche size for installation (HxWxD) : 575-597 x
• 560-568 x 550 mm
• Dimensions : 595 x 594 x 548 mm
• Dimensions of the packed product (HxWxD) : 665 x 680 x 640
  mm
• Control Panel Material : Glass
• Door Material : Glass
• Net weight : 32.3 kg
• Usable volume of cavity : 66 l
• Cooking method : Bottom heat, Conventional heat, Defrost, Full
• width variable grill, Hot Air, Hotair gentle, Hot air grilling, Pizza
• setting
• First cavity material : Other
• Number of interior lights : 1
• Length electrical supply cord : 100.0 cm
• Interior Lights - cavity 1 : 1
• Pull-out system : 1-level
• Clock function : Alarm, Off, On
• Included accessories : 1 x enamel baking tray, 1 x combination
• grid, 1 x universal pan
• Broil Element Wattages cavity 1 : 2800 W
• Energy consumption per cycle conventional (2010/30/EC) : 0.98
• kWh/cycle
• Energy consumption per cycle forced air convection (2010/30/
• EC) : 0.79 kWh/cycle
• Energy efficiency index (2010/30/EC) : 95.2 %
• Connection Rating : 3300 W
• Fuse protection : 16 A
• Voltage : 220-240 V
• Frequency : 50-60 Hz
• Plug type : India plug (16 Ampere)
• Color / Material Front : Black
• Energy input : Electric
• Required cutout/niche size for installation (in) : x x
• Included accessories : 1 x enamel baking tray, 1 x combination
  grid, 1 x universal pan
• Cavity volume: 66 l
• Hook-in racks / rails
• 1-level
• Design
• Rotary control knob, 2 retractable control dials
• Colour display: red
• Ecolyse features: back panel
• Full-glass inner door
• Comfort
• LED display control (red)
• electronic clock with LED display
• Oven door with Drop down door, soft closing
• Rapid heating-up
• Rapid heating-up: manual
• Integral cooling fan
• Bar handle

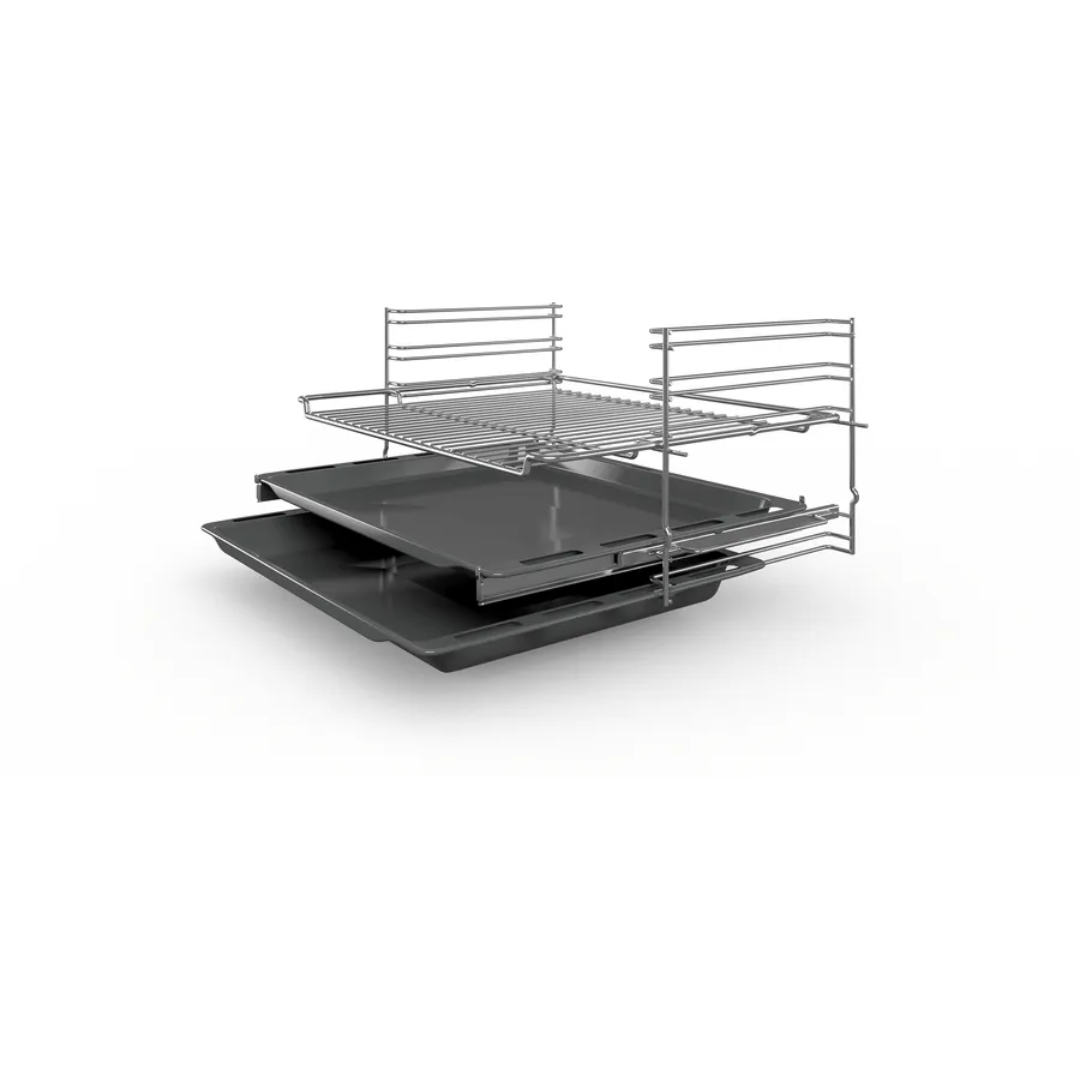

• Accessories
• 1 x combination grid, 1 x enamel baking tray, 1 x universal pan
• Connecting cable: 100 cm
• Child lock
• Technical Information
• Length of mains cable: 100 cm
• Nominal voltage: 220 - 240 V
• Total connected load electric: 3.3 KW
• Energy efficiency rating (acc. EU Nr. 65/2014): A(at a range of
• energy efficiency classes from A+++ to D)
• Energy consumption per cycle in conventional mode:0.98 kWh
• Energy consumption per cycle in fan-forced convection
• mode:0.79 kWh
• Number of cavities: 1 Heat source: electrical Cavity volume:66
• Energy efficiency rating (acc. EU Nr. 65/2014):A(at a range of
• energy efficiency classes from A+++ to D)
• Energy consumption per cycle in conventional mode:0.98 kWh
• Energy consumption per cycle in fan-forced convection
• mode:0.79 kWh
• Number of cavities: 1 Heat source: electrical Cavity volume:66

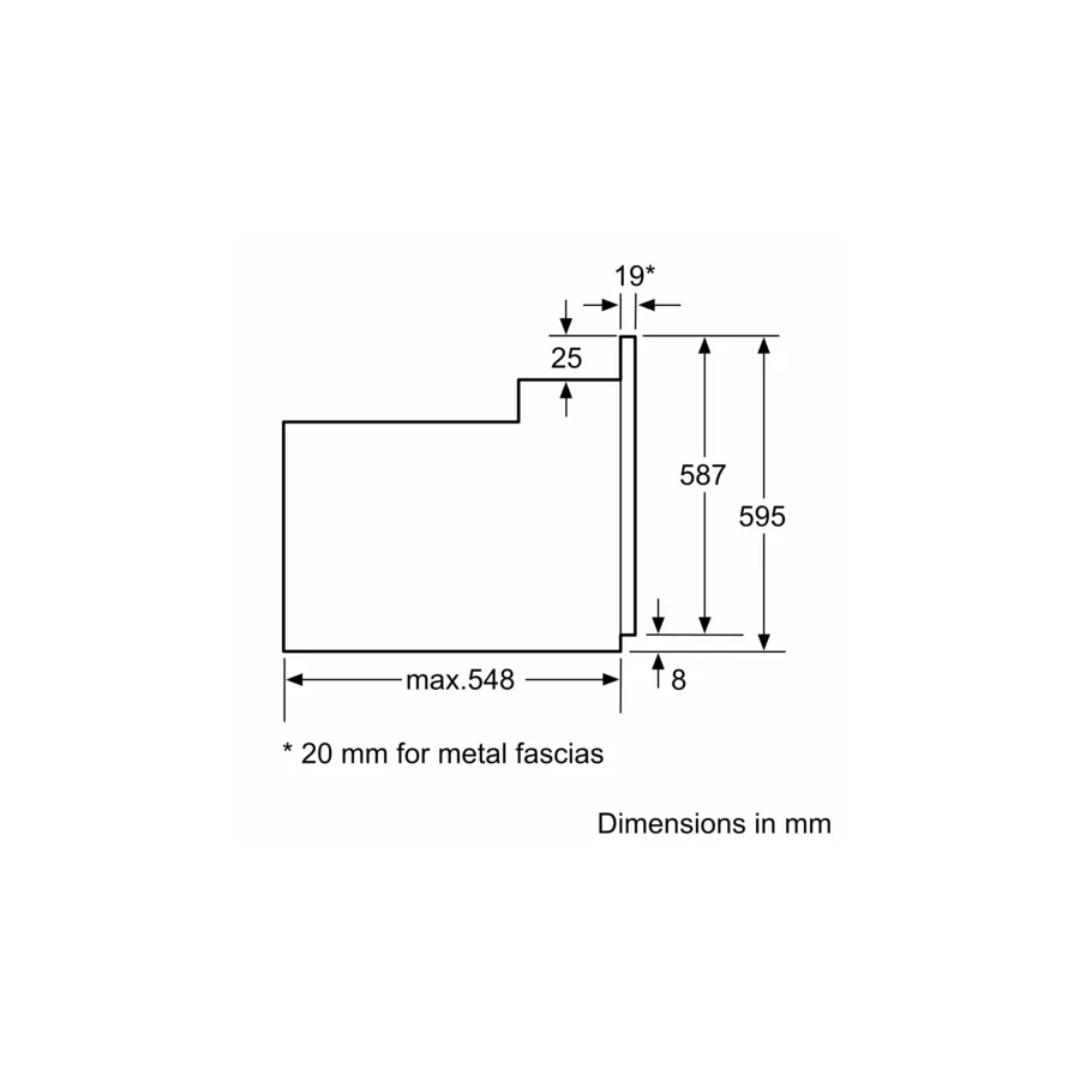

• Dimensions:
• Appliance dimension (hxwxd): 595 mm x 594 mm x 548 mm
• Required niche size for installation (HxWxD): 575 mm - 597
  mm x 560 mm - 568 mm x 550 mm

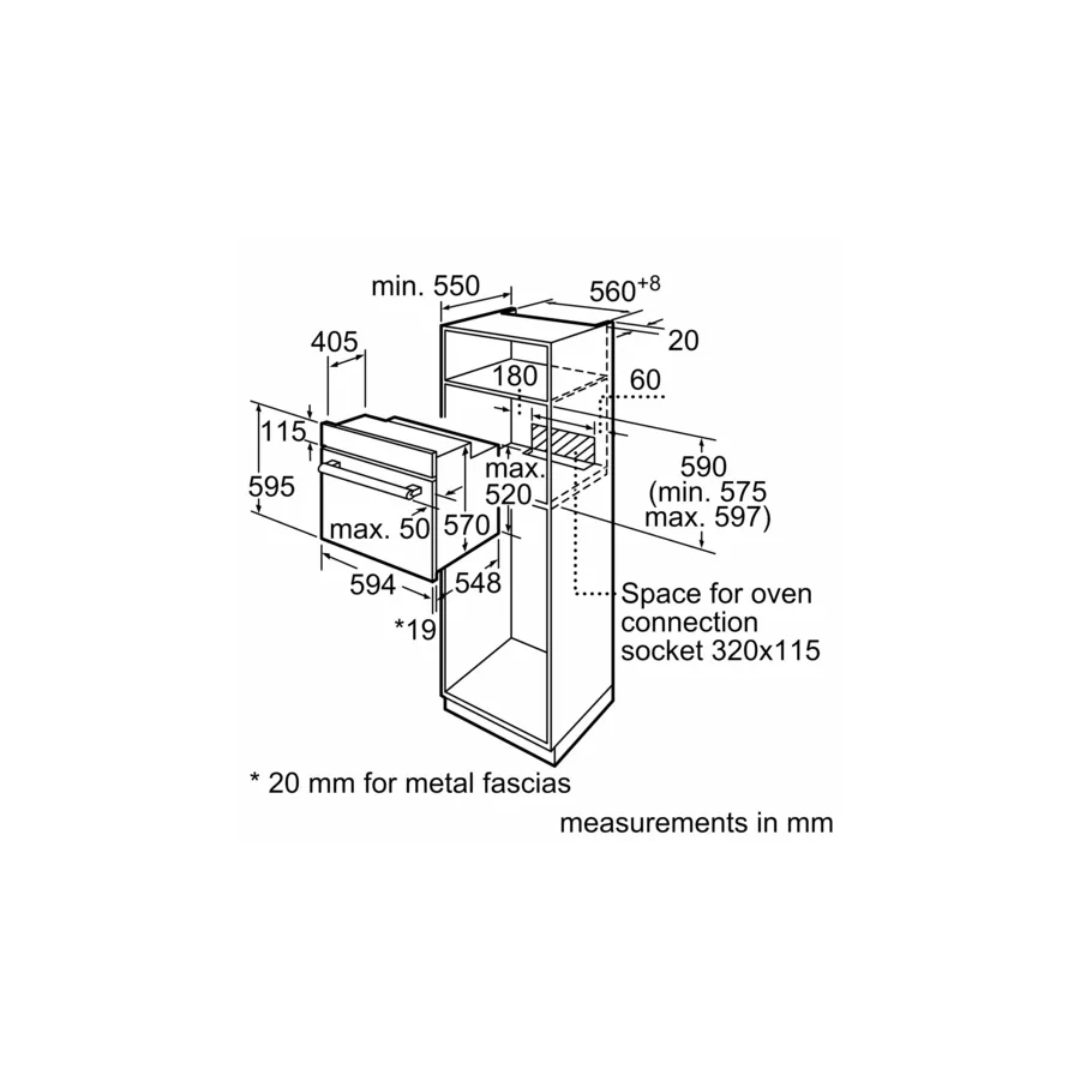

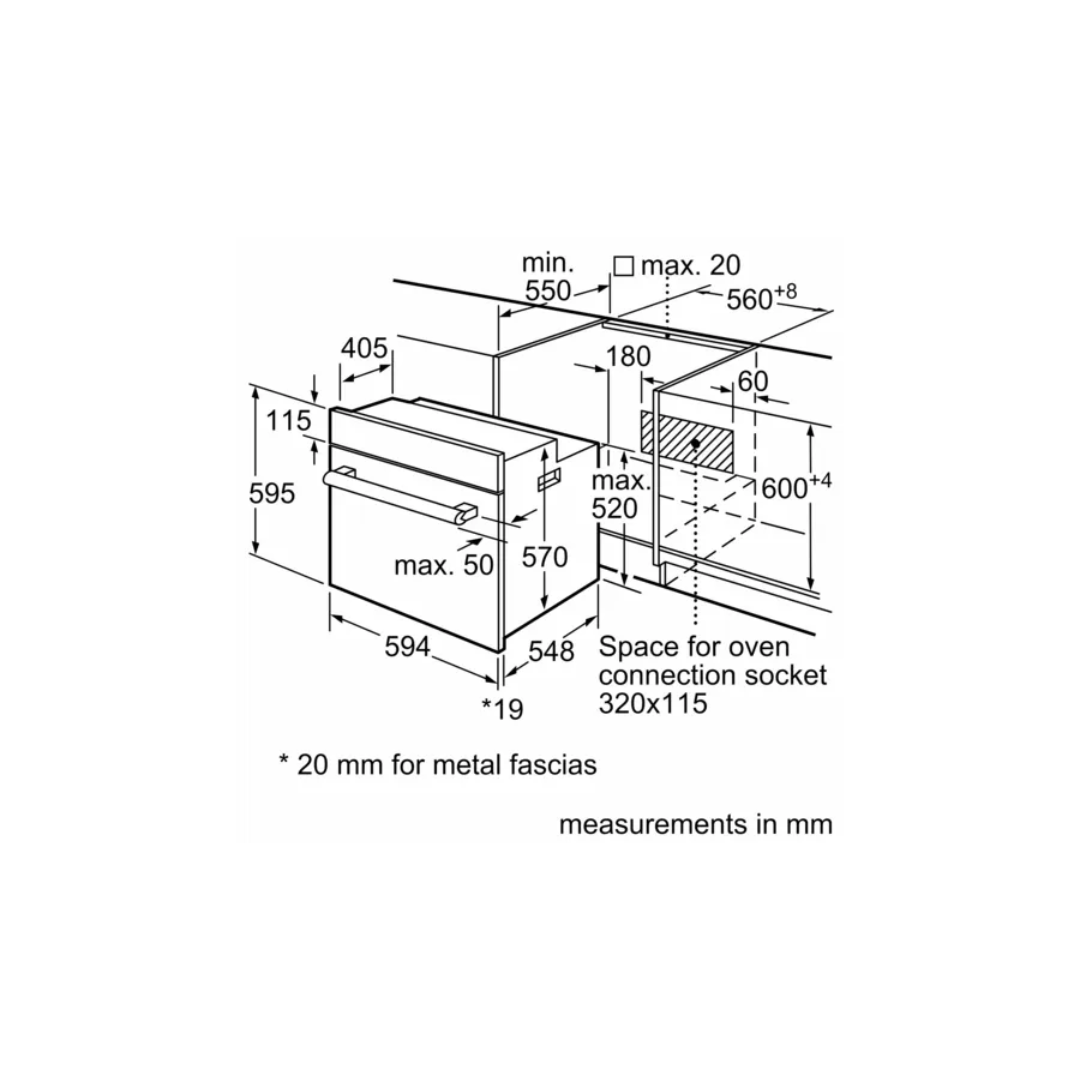

• Please reference the built-in dimensions provided in the
• installation drawing
• Cavity inner surface: enamel grey

Additional Information

• Manufacturer: Bosch, BSH Household Appliances Manufacturing Pvt Ltd.
• Dimensions of the packed product : 26.18 x 25.19 x 26.77
• Net weight : 71.000 lbs
• Gross weight : 76.000 lbs
• Length electrical supply cord : 100.0 cm
• Net weight : 32.3 kg
