Technical Data

• Product name/family : Cooking zone ceramic
• Construction type : Built-in
• Energy input : Electric
• Total number of positions that can be used at the same time : 4

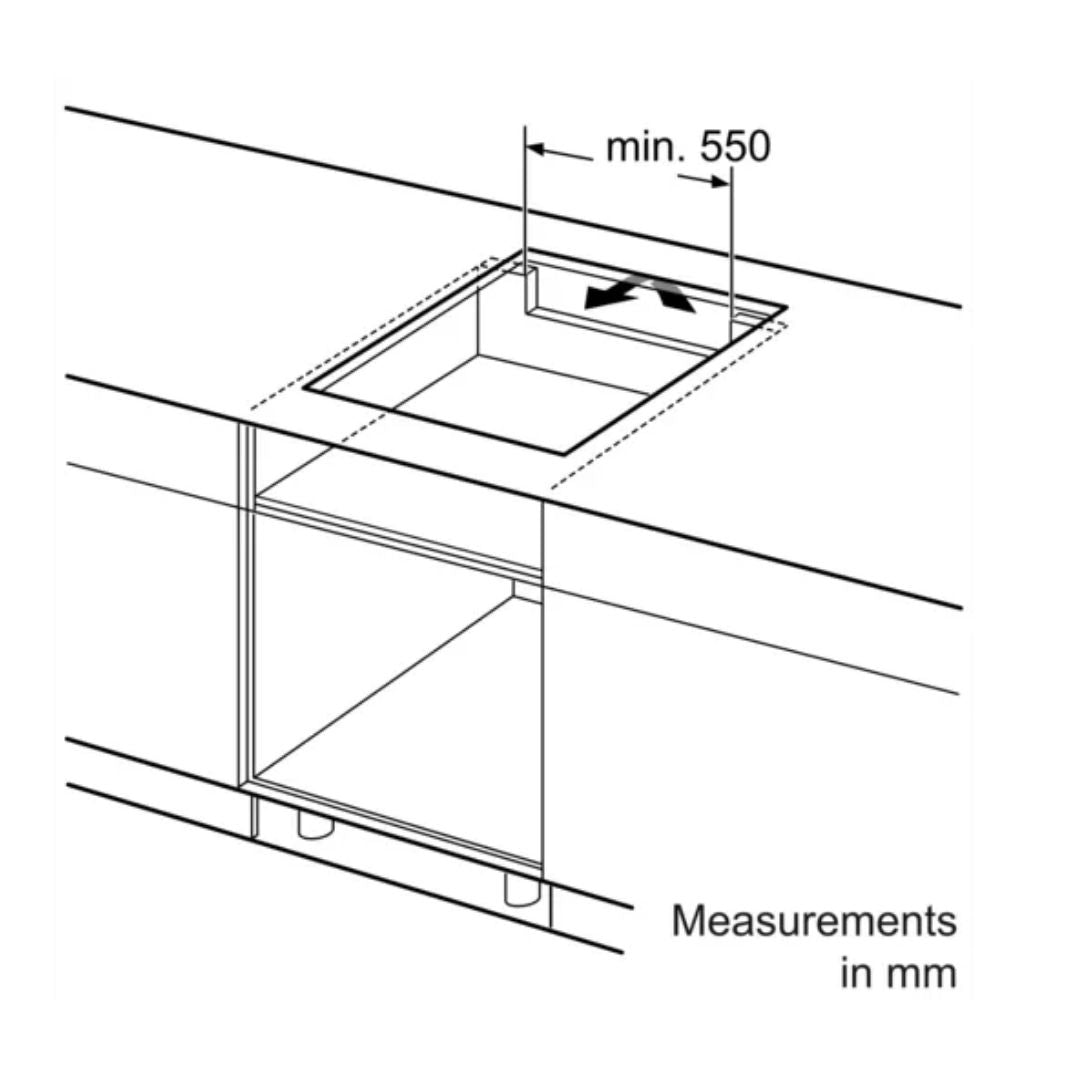

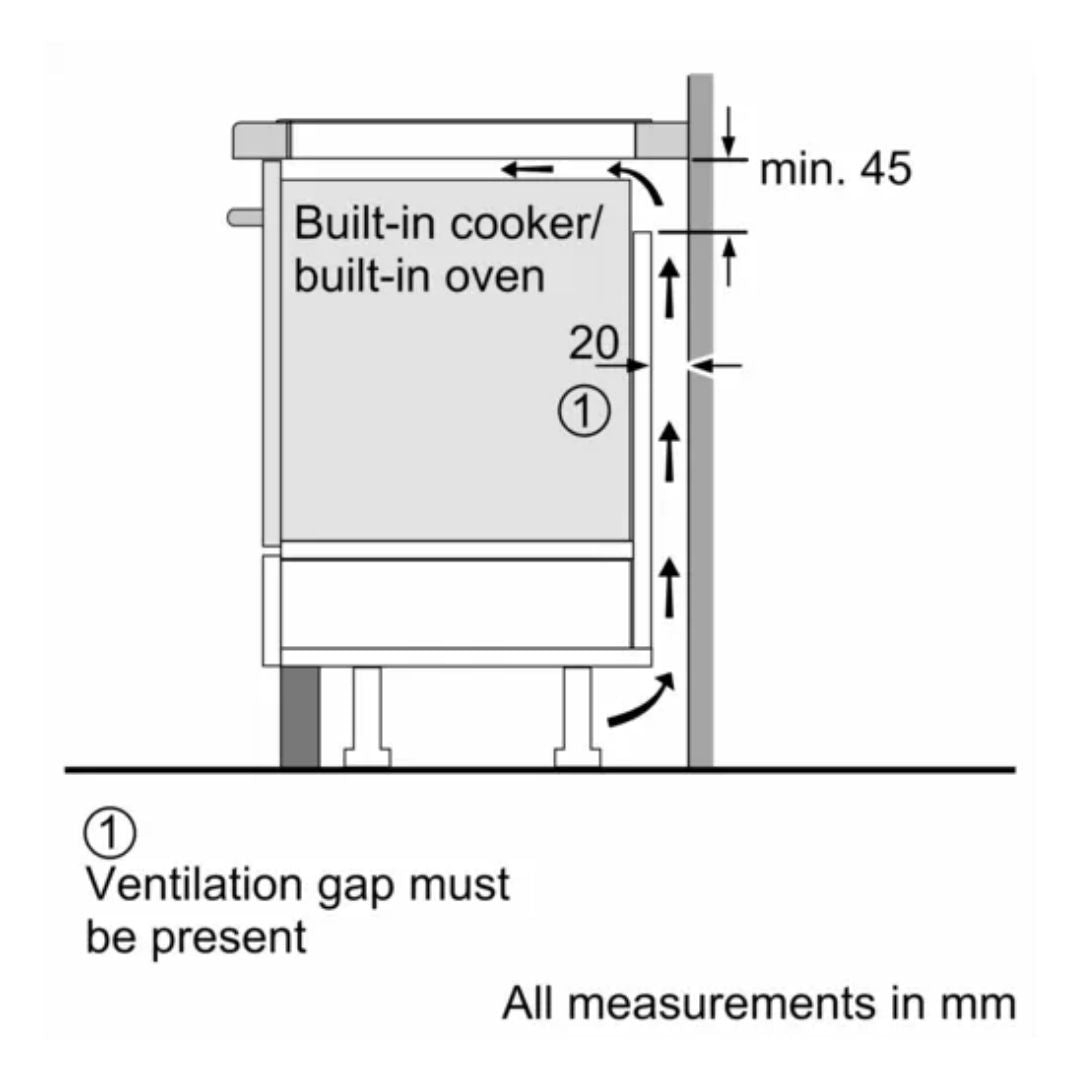

• Min. required niche size for installation (HxWxD) : 51 x 560-560
  x 490-500 mm
• Width of the appliance : 592 mm
• Dimensions : 51 x 592 x 522 mm
• Dimensions of the packed product (HxWxD) : 126 x 753 x 608
  mm
• Net weight : 10.8 kg
• Gross weight : 13.1 kg
• Residual heat indicator : Separate
• Location of control panel : Hob front
• Basic surface material : Ceramic
• Color of surface : Black
• Length electrical supply cord : 110 cm
• Sealed Burners : No
• Heating with booster : All
• Power of heating element (kW) : 1.8 kW
• Power of 3rd heating element (kW) : 1.8 kW
• Power of 5th heating element (kW) : 1.4 kW
• Power of heating element (kW in boost) : [3.1] kW
• Power of 3rd heating element (kW in boost) : [3.1] kW
• Power of 5th heating element (kW in boost) : [2.2] kW
• Connection Rating : 7400 W
• Fuse protection : 2*16 A
• Voltage : 220-240 V
• Frequency : 50 Hz
• Main colour of product : Black
• Energy input : Electric
• Plug type : No plug
• Appliance Dimensions (h x w x d) (in) : + x x
• Dimensions of the packed product : 4.96 x 23.93 x 29.64
• Net weight : 24.000 lbs
• Gross weight : 29.000 lbs
• Total number of positions that can be used at the same time : 4
• Length electrical supply cord : 110 cm
• Min. required niche size for installation (HxWxD) : 51 x 560-560x 490-500 mm
• Dimensions : 51 x 592 x 522 mm
• Dimensions of the packed product (HxWxD) : 126 x 753 x 608
  mm
• Net weight : 10.8 kg
• Gross weight : 13.1 kg

Cooking Zone

• 4 Induction cooking zones
  - Cooking zones:
• 1 x Ø180 mm, 1800 W (max. Power level 3.1 KW) Induction;
• 1 x Ø180 mm, 1800 W (max. Power level 3.1 KW) Induction;
• 1 x Ø145 mm, 1400 W (max. Power level 2.2 KW) Induction;
• 1 x Ø210 mm, 2200 W (max. Power level 3.7 KW) Induction
  Design

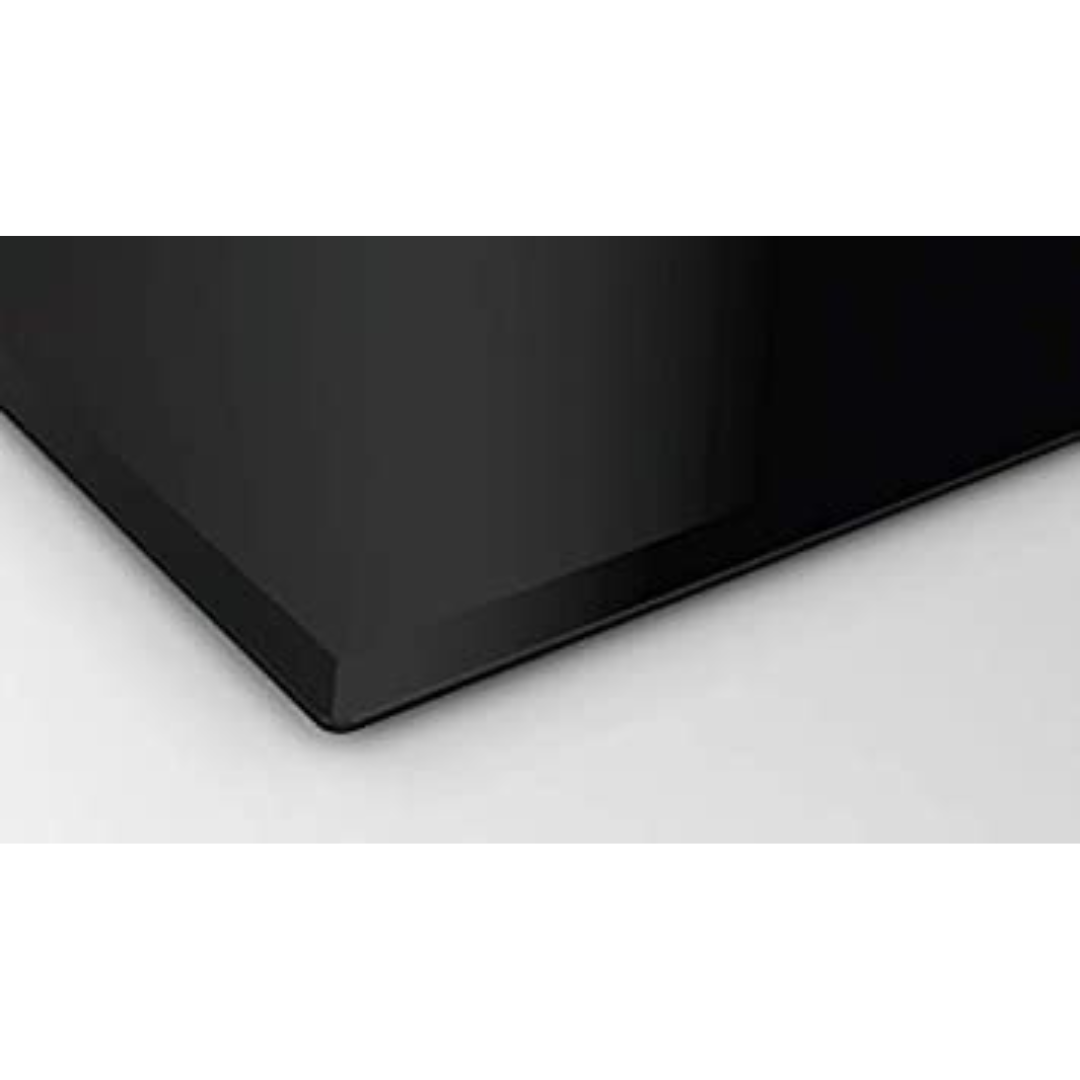

•  Frameless with facetted edges TouchSelect
• Key Functions
• ReStart Function
• PowerBoost function for all zones
•  Variable 17-stage power settings for each zone
•  Switch off timer for every cooking zone
• Count down function
•  QuickStart Function
•  2 stage residual heat indicator for each zone
•  Automatic pan recognition
• power management function Automatic safety switch off
  Safety lock
• Technical Information

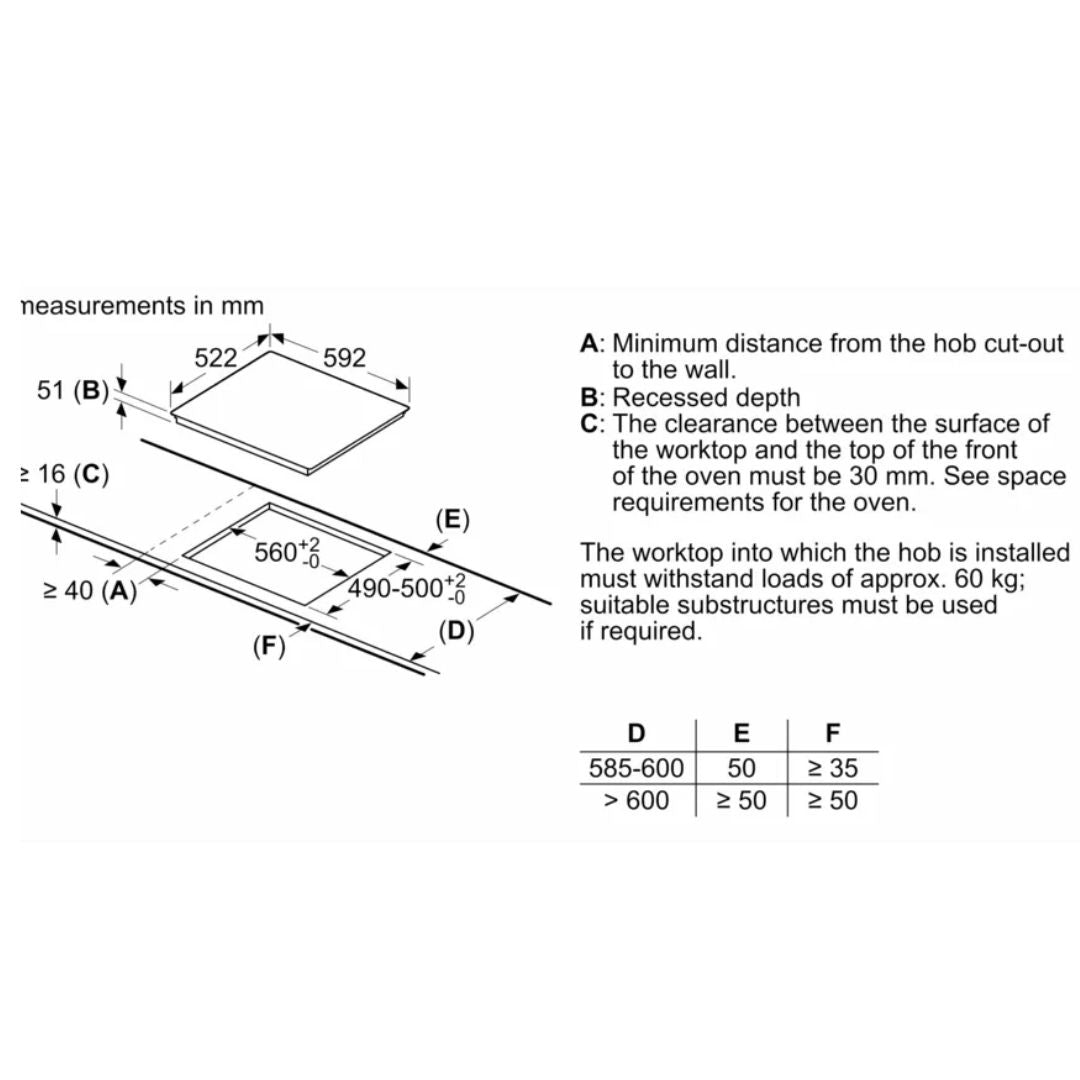

• Dimensions of the product (HxWxD mm) : 51 x 592 x 522
• Required niche size for installation (HxWxD mm) : 51 x560-560 x 490-500
• Electrical connection rating: 7400 W
• Plug type: no plug

Additional Information

• Country of Origin: India
• Manufacturer: BSH Household Appliances Manufacturing Pvt Ltd. Arena House, 2Nd Floor, Main Building, Plot No- 103, Road No-12, MIDC, Andheri (East), Mumbai- 400093
• Packer: BSH Household Appliances Manufacturing Pvt Ltd. Arena House, 2Nd Floor, Main Building, Plot No- 103, Road No-12, MIDC, Andheri (East), Mumbai- 400093
• Importer: BSH Household Appliances Manufacturing Pvt Ltd. Arena House, 2Nd Floor, Main Building, Plot No- 103, Road No-12, MIDC, Andheri (East), Mumbai- 400093
• Net Quantity: 1.00 count
