Bosch Series 6 Island Cooker Hood 90 cm Stainless Steel DIB98JQ50I

Design
- 90 cm stainless steel Box design hood
- Box design
- Ceiling
- Touch control (3 speeds plus 2 intensive) with lightline

Performance
- 3 speeds plus 2 intensive
- Extraction rate according to EN 61591 ø 15 cm:
- max. Normal use445m³/h
- Intensive867 m³/h
- Noise level according to EN 60704-3 und EN 60704-2-13 exhaust
air:
- Max. normal use:54 dB(A) re 1 pW (41dB(A) re 20 µPa sound
pressure)
- Intensive:69 dB(A) re 1 pW (56 dB(A) re 20 µPa sound pressure)
- Extraction rate in recirculation mode:
- Max. normal use:371m³/h
- Intensive:513 m³/h
- Noise levels in recirculation mode:
- Max. normal use:67 dB(A) re 1 pW (58dB(A) re 20 µPa sound
pressure)
- Intensive:75 dB(A) re 1 pW (61 dB(A) re 20 µPa sound pressure)

Comfort
- Automatic revert setting, 6 minutes
- Automatic 10 minutes after running
- easy to clean innerframe
- Air quality sensor
- Light dimmer function
- Softlight with dimmer function
- Efficient BLDC-technology
- 4 x 1.5W LED
- Light Intensity: 423 lux
- Colour Temperature: 3500 K
- Saturation display filter: grease- and charcoal filter
- Steel filter cover
- Additional noise reduction insulation
- Back-pressure flap: No
- Energy Efficiency Class: A+
- Blower Efficiency Class: A*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: B*
Technical Information
- Suitable for ducted or recirculating operation only
- Recirculation kit or clean air kit
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)

General

Width: 90 cm Depth of the product: 600 mm

Built-in / Free-standing: Built-in

Operating Mode: Convertible

Max. air recirculation: 353 m³/h

Sound pressure max. normal: 41 dB(A) re 1pW

Type of control setting and signalling devices: touch control

Total annual energy consumption: 31.9 kWh/annum

Power consumption standby/display off: 0.5 W

Construction type

Diameter of air outlet: 120 / 150 mm

Colour: Stainless Steel

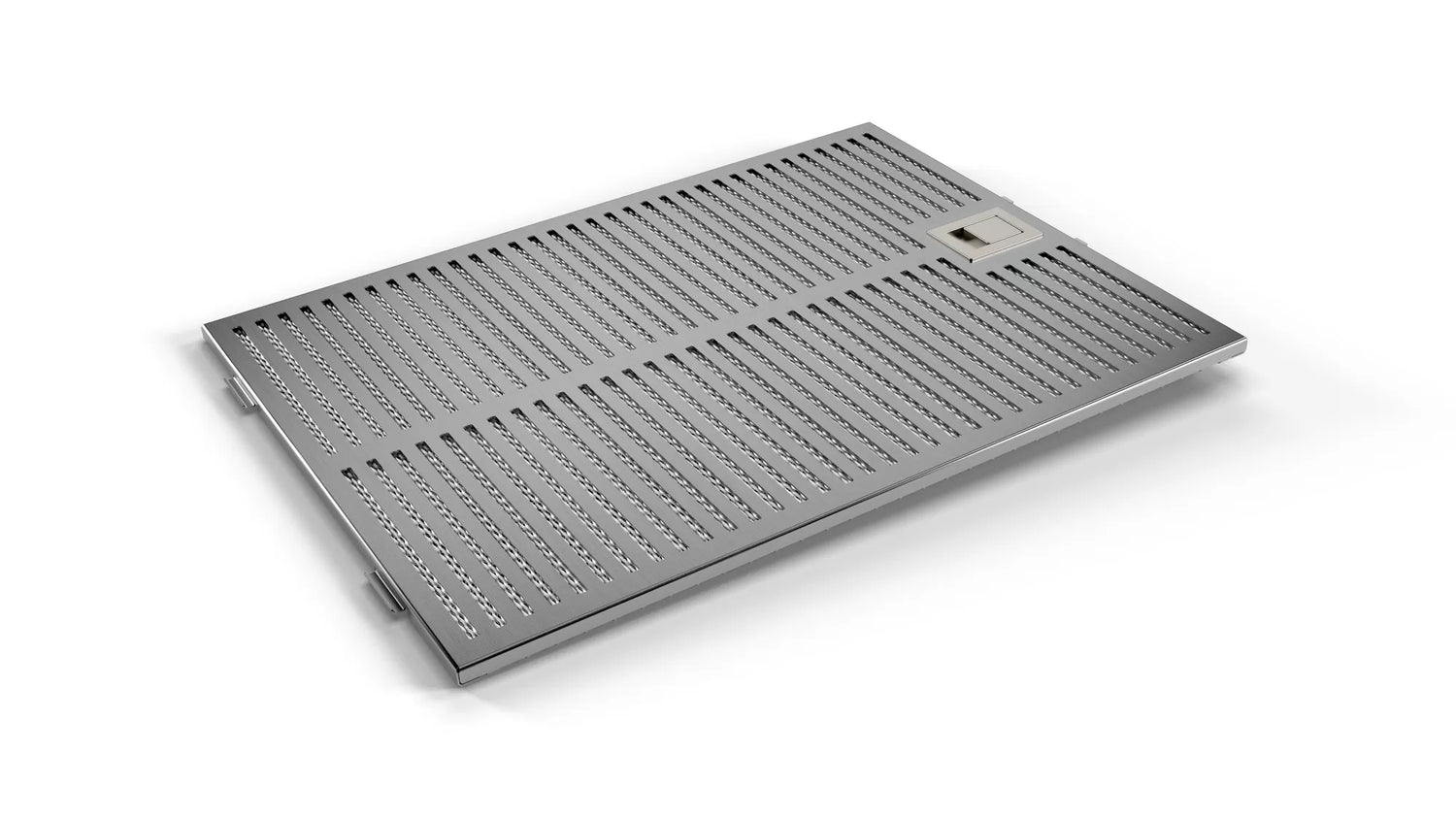

Grease filter material: Washable stainless steel

Grease filter type: Multilayer cassette

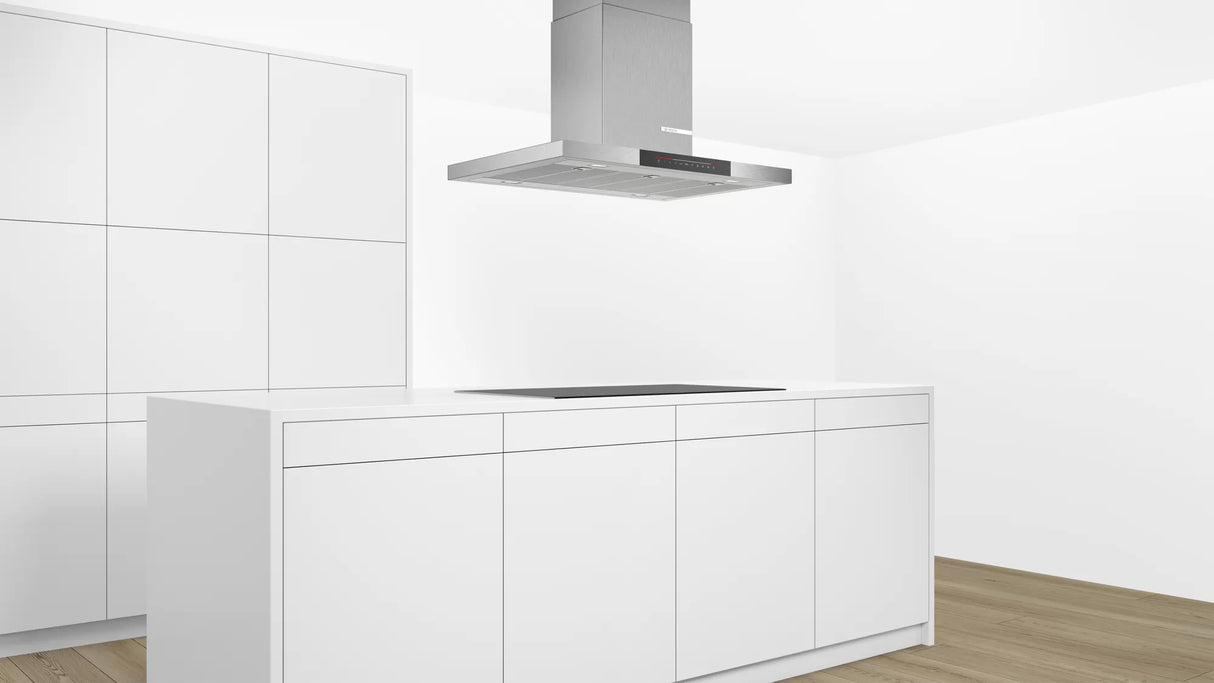

Installation typology: Island

Material chimney: Stainless steel

Motor location: Integrated motor in hood chimney

Number of motors: 1

Operating Mode: Convertible

Typology: Island/Ceilling

Connection

Connection rating: 166 W

Length electrical supply cord: 130.0 cm

Frequency: 50; 60 Hz

Total power of the motors: 160 W

Voltage: 220-240 V
