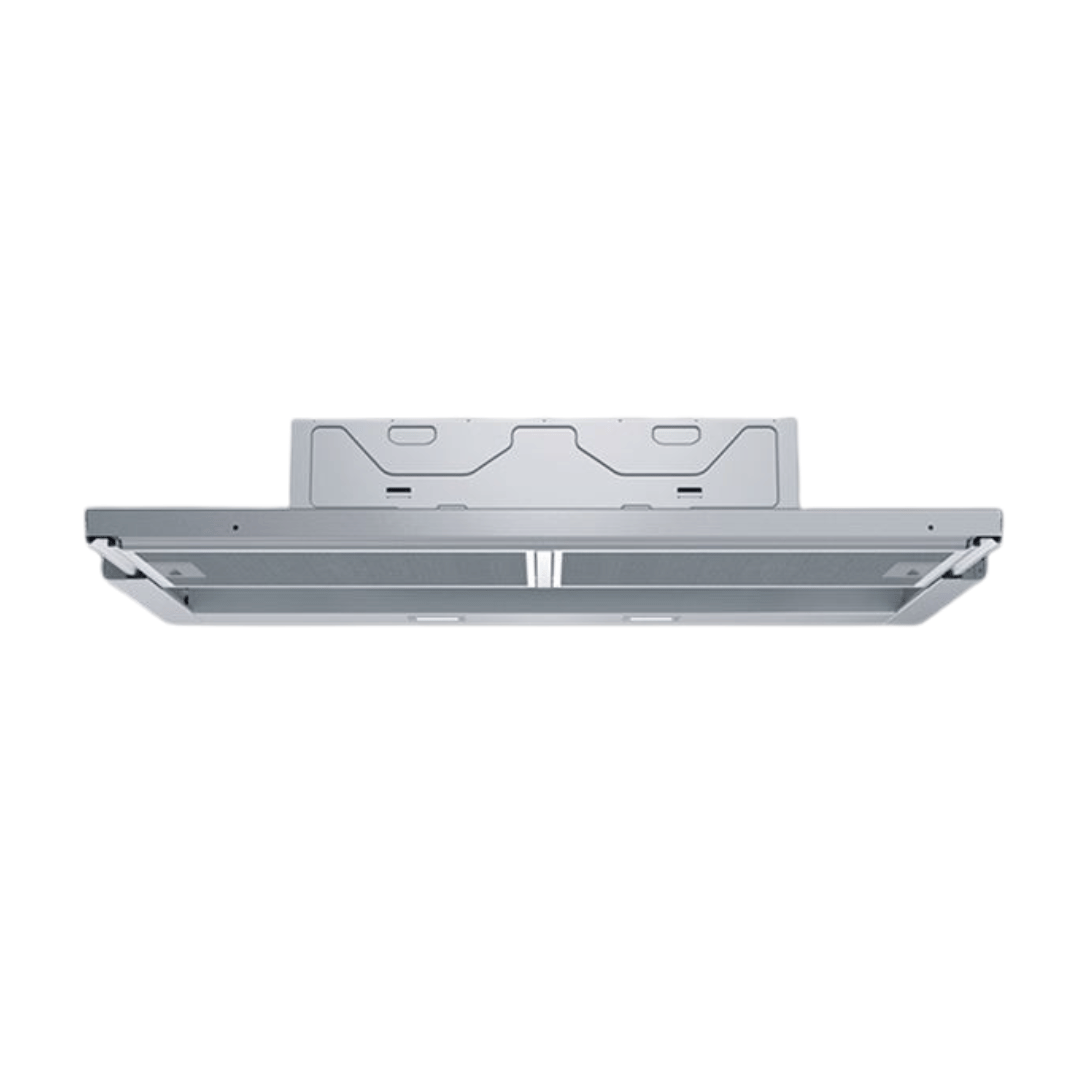

Blaupunkt By Hettich Wall Hood , 5DA39452 , Energy-saving operation

Technical Details

• Brand: Blaupunkt By Hettich

• Model No.: 5DA 39452

• Output, consumption

• Voltage: 220 240 V

• Total connected load: 76 W

• Energy efficiency class: A*

• Average power consumption: 48.3 kWh / year*

• Fan efficiency class: B*

• Light efficiency class: A*

• Grease filter efficiency class: C*

• Noise min. / max. Normal level: 50 / 63dB*

• Fan output max. Normal level / Intensive level*:

• In extraction mode 266 / 412 m3 / h

• In circulation mode 166 / 353 m3 / h

• According to EU Regulation No. 65/2014 / 塮an

• capacity according to EN 61591

• Design/Comfort

• Electronic control on the side

• 4-stage fan power (3 power levels/ 1 intensive

• level) adjustable

• with short-stroke keys with LED display

• Intensive stages with automatic reset

• Automatic three-stage fan run-on with digital

• display

• Operating mode and power

• Fan capacity for exhaust air operation according

• to EN 61591:

• max. normal stage 266 m3/h, intensive stage

• 412 m3/h

• Noise values according to EN 60704-2-13 for

• exhaust air

• operation:

• Max. Normal stage: 63 dB(A) re 1 pW

• Intensive stage: 70 dB(A) re 1 pW

• Noise values according to EN 60704-2-13 max.

• normal stage

• exhaust air operation: Noise, highest normal

• stage: 63 dB dB(A)

• Noise min./max. normal stage: 50/63 dB

• Energy-saving operation due to efficient BLDC

• technology

• Equipment features:

• Length connection cable: 175

• Niche dimensions (H x W x D): 162mm x

• 526.0mm x

• 290mm

• Height of the fireplace:

• Height of the device without fireplace:

• Control: electronic

• Type of lamps: LED

• type of plug: Schuko/Gardy.m.grounding

• Housing material: galvanized

• Approval certificates: CE, VDE

• Dimensions of the packed device:

• 12.20 x 37.00 x 14.17

• Net weight: 10.12 kg

• Gross weight: 12.30 kg

• Location of the blower: Motor in the housing

• Back pressure flap: No

• Length of connection cable: 175

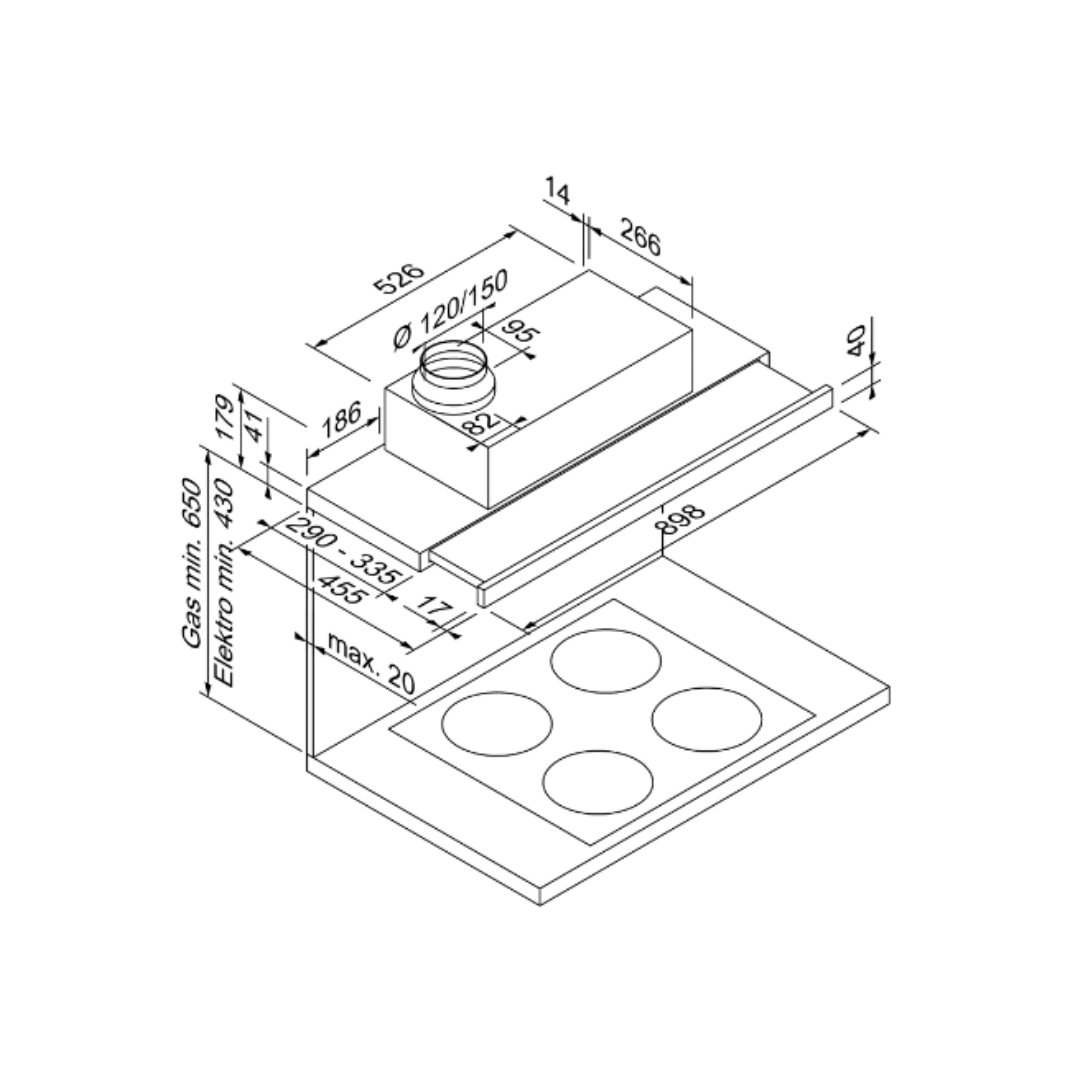

• Planning and installation information

• Unit dimensions (HxWxD): 203 x 898 x 290 mm

• Installation dimensions (HxWxD): 162 x 526 x

• 290 mm

• Exhaust air connection Ø 150 mm (Ø 120 mm

• enclosed)

• Length of connection cable: 1.75 m with plug

• without handle (available as optional accessory)

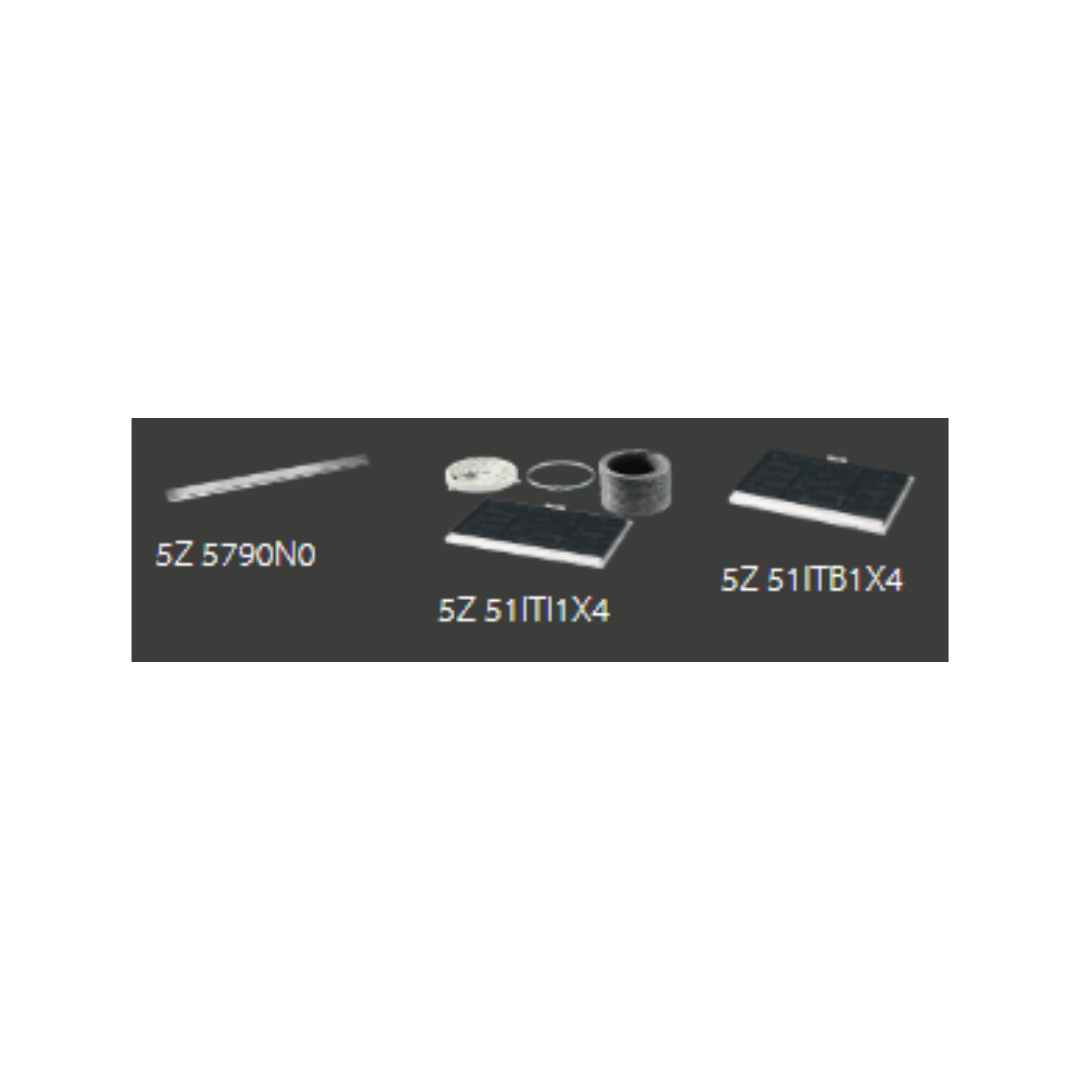

• Special Accessories:

• 5Z5145X5 : Standard recirculation set

• 5Z5790N0 : Stainless steel handle bar

• Dimensions H W D

• Appliance dimensions, extraction: 20.3 89.8

• 29.0 cm

• Appliance dimensions, circulation: 20.3 89.8

• 29.0 cm

Additional Information

• Country of Origin: Germany

• Manufacturer: Blaupunkt

• Imported by: Hettich India Private Limited - 302, Durolite House, Opp. SAB TV, New Link Road, Andheri ( West ) Mumbai - 400053
