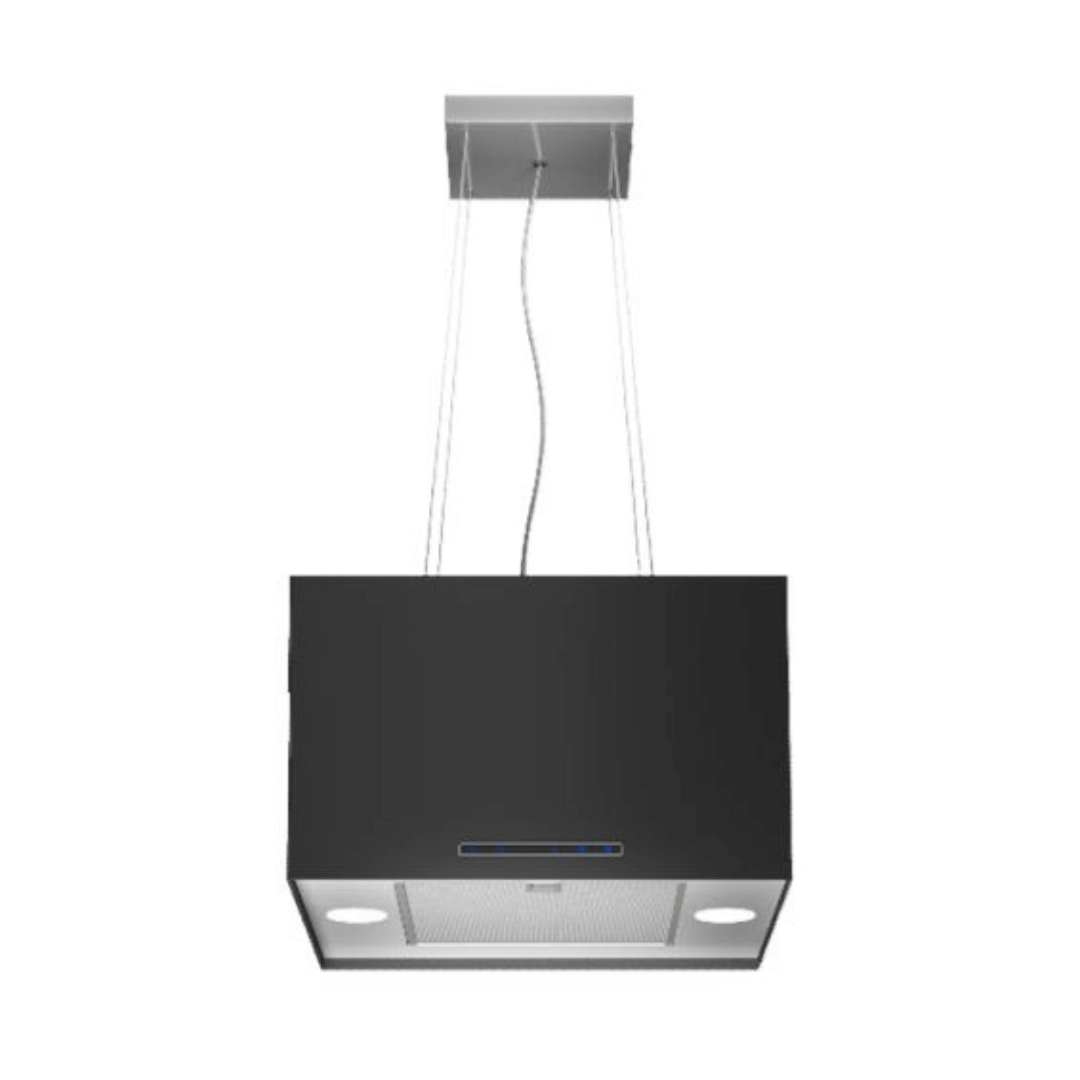

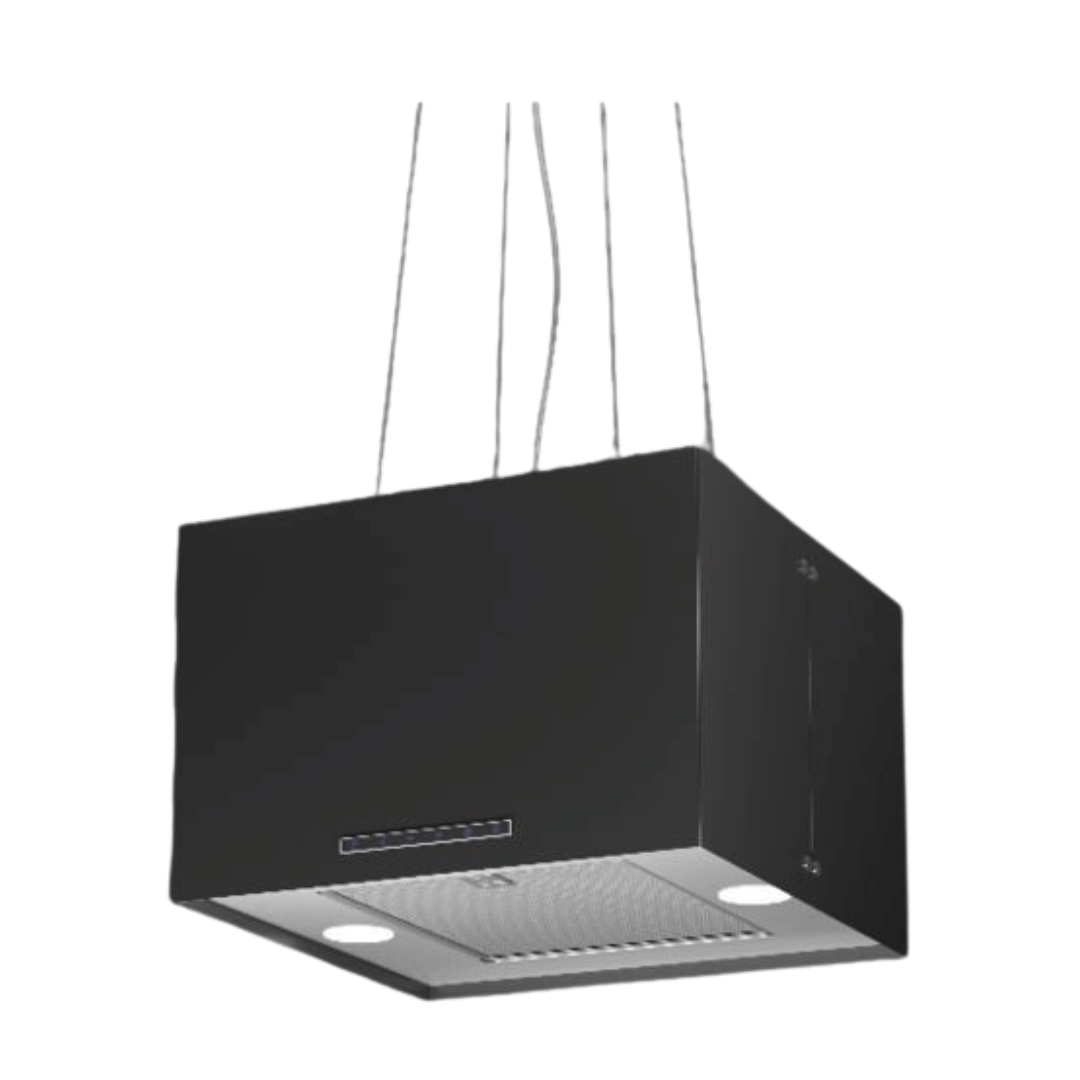

Blaupunkt By Hettich Island Hood 5DB 96453 Chimney, Black Painted Stainless Steel, Multi Electronic Control

Technical Details

• Brand: Blaupunkt By Hettich

• Model No.: 5DB 96453

• Output, consumption

• Voltage: 220 - 240 V

• Total connected load: 225.4 塛

• Energy efficiency class: A*

• Average power consumption: 43 KWh / 墆ear*

• Fan efficiency class: A*

• Light efficiency class: A*

• Grease filter efficiency class: C*

• Noise min. / max. Normal level: 48 / 60 塪B*

• Fan output max. Normal level / 塈ntensive level*:

• In circulation mode 394 m3 / 塰 / 445 m3 / 塰

• According to EU Regulation no. 65 / 2014 / 塮an

• power according to EN 61591

• Design, comfort

• Stainless steel and black painted stainless steel

• For ceiling installation above kitchen islands

• Multi Control

• Touch Control

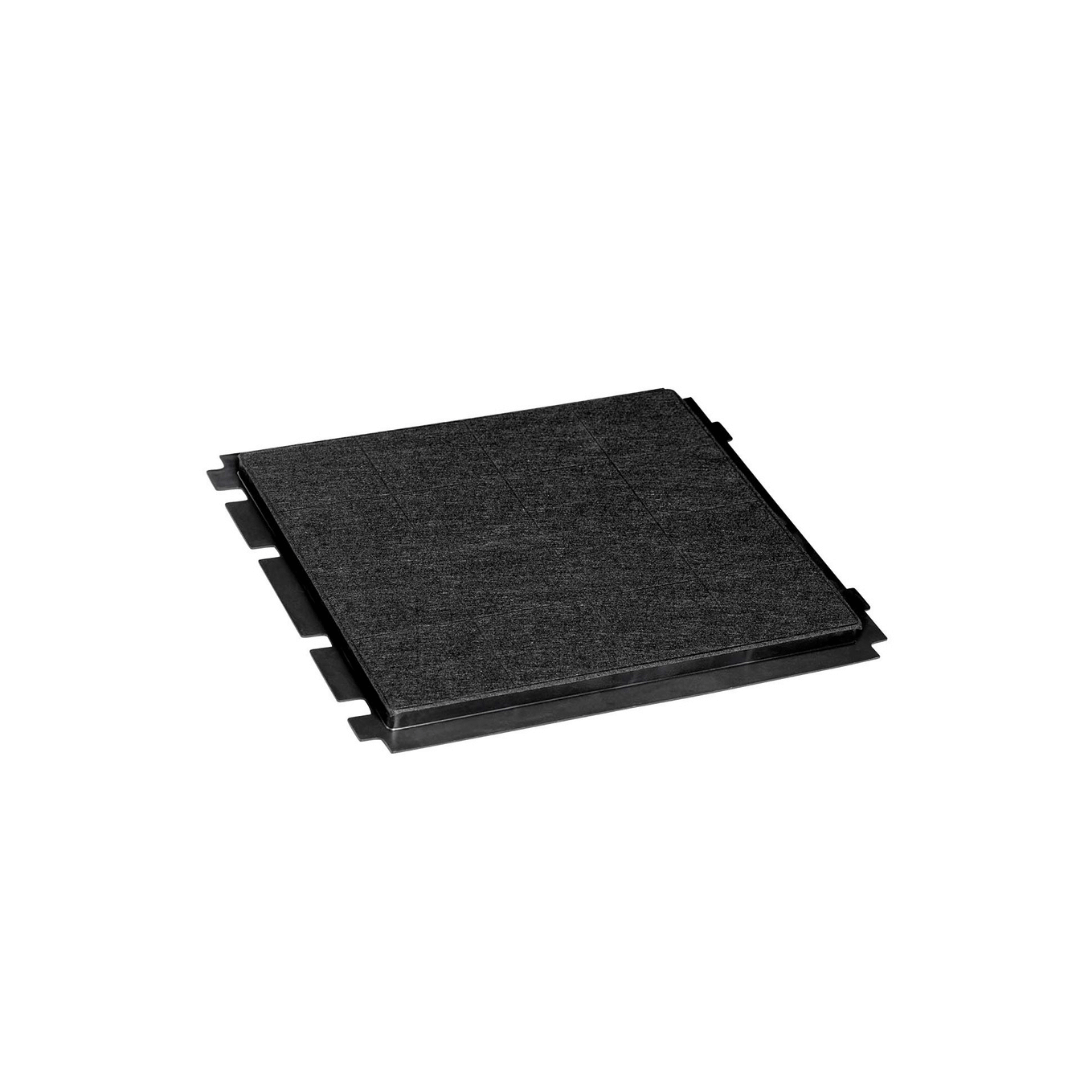

• Circulation hood (an activated carbon filter

• required for circulation mode)

• Electronic control

• 4-level fan power (3 power levels + 1 intensive

• level) controllable through Multi Control

• Intensive levels with automatic reset

• Powerful and quiet blower

• Uniform, bright lighting with 2 壝 2.7 塛 LED

• modules

• Colour temperature: 4,000 塊

• Equipment features:

• Device type: Island Hood

• Approval certificates: CE

• Connection cable length (cm): 200

• Niche dimensions (mm):

• Number of lamps (pcs): 2

• Diameter of the exhaust air connection (mm):

• Material of the grease filter:Aluminium

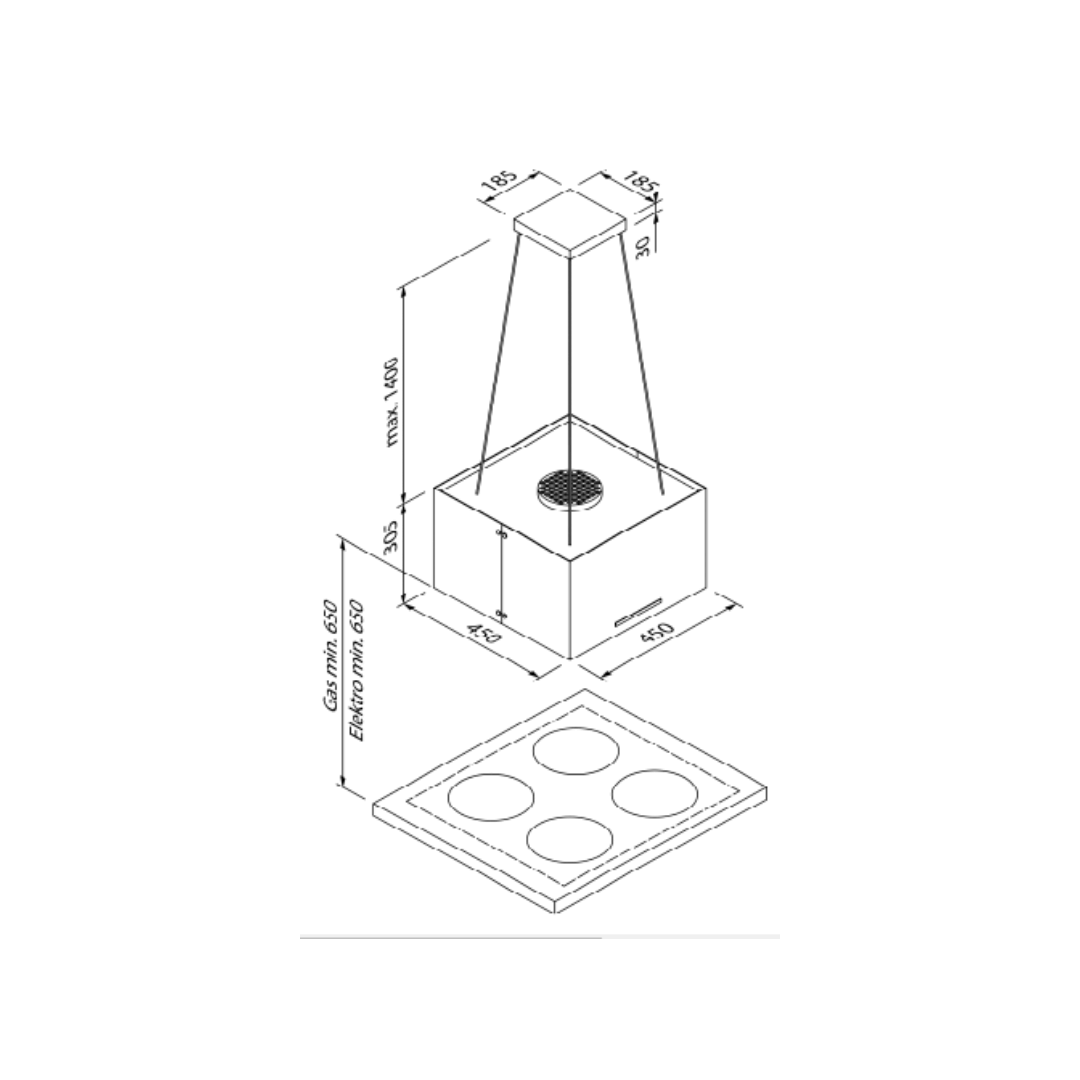

• Technical data and dimensions (HxWxD)

• Device dimensions: Max. 1700 x 450 x 450 mm

• Device dimensions (packed): 599 x 599 x 470

• Net weight (kg): 11

• Gross weight (kg): 16,52

• Accessories

• Metal grease filter, dishwasher-safe

Additional Information

• Country of Origin: Germany

• Manufacturer: Blaupunkt

• Imported by: Hettich India Private Limited - 302, Durolite House, Opp. SAB TV, New Link Road, Andheri ( West ) Mumbai - 400053
