Technical Details

• Brand: Blaupunkt By Hettich
• Model No.: 5DF 92760
• Output, consumption
• Voltage: 220 240 V
• Total connected load: 208.2 W
• Energy efficiency class: A*
• Average power consumption: 51 kWh/year*
• Fan efficiency class: A*
• Light efficiency class: A*
• Grease filter efficiency class: B*
• Noise min./max. normal level: 48/64 dB*
• Fan output max. normal level /intensive level*:
• in extraction mode 521 m3/h / 650 m3/h
• in circulation mode 380 m3/h / 480 m3/h
• According to EU Regulation 65/2014 / fan output
• according to EN 61591
• Design, comfort
• Black painted stainless steel

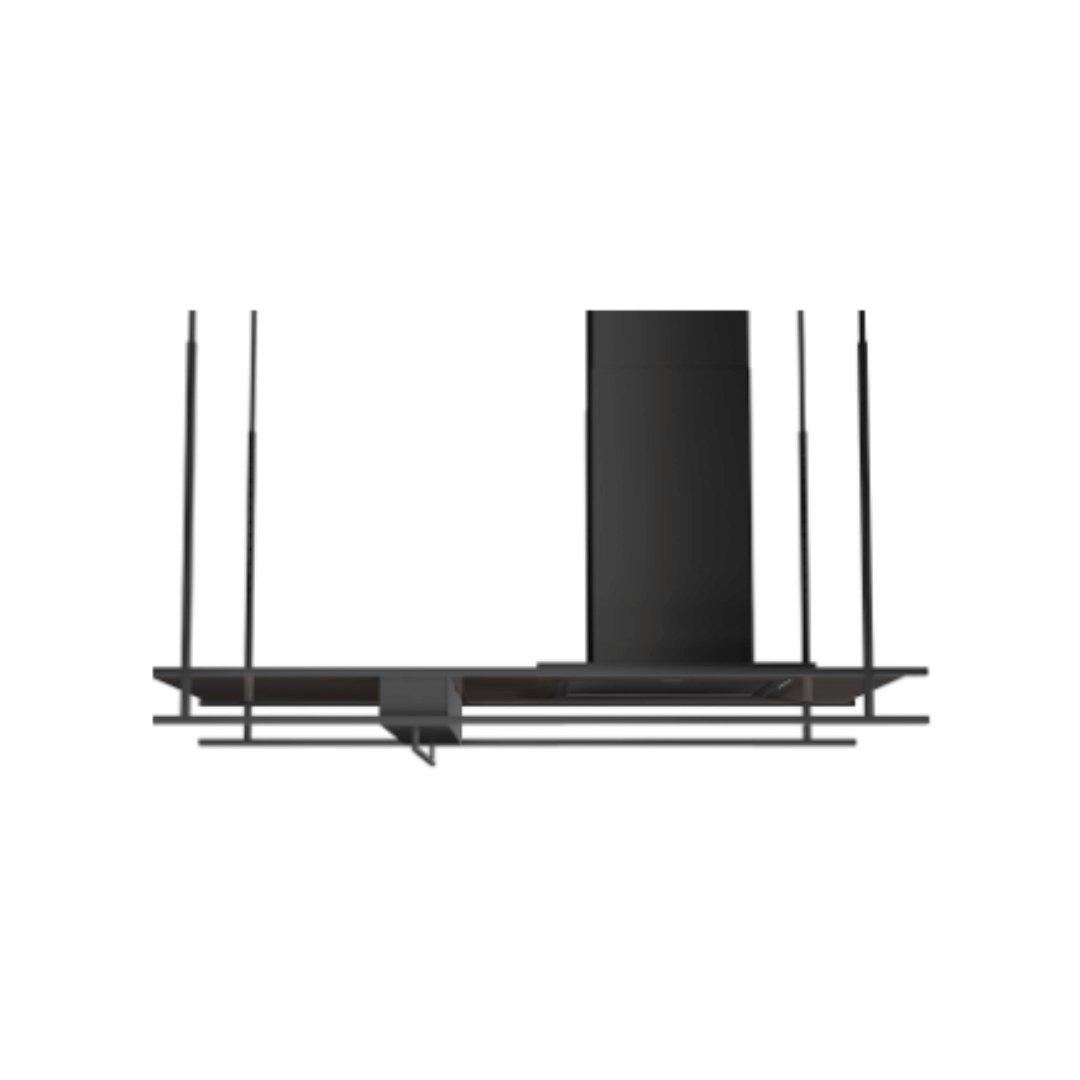

• For ceiling installation above kitchen islands
• Optional extraction or circulation mode (for
• circulation mode, a carbon filter is required)
• Multi Control
• 4-level fan power (3 power levels + 1 intensive
• level) controllable through Multi Control
• Intensive levels with automatic reset
• High, fine-tunable fan output
• Powerful and quiet blower
• Uniform, bright lighting with 2 4.1 W LED
• modules
• Illuminance: 270 lux
• Colour temperature 4,000 K preset
• Features:
• Device type: Wall hood
• Approval certificates: CE
• Length of connecting cable (cm): 150
• Net weight (kg):
• Gross weight (kg):
• Number of lamps (pcs): 2
• Diameter of exhaust port (mm): 150
• Grease filter material: Aluminium
• Accessories
• Metallic grease filter, dishwasher-safe

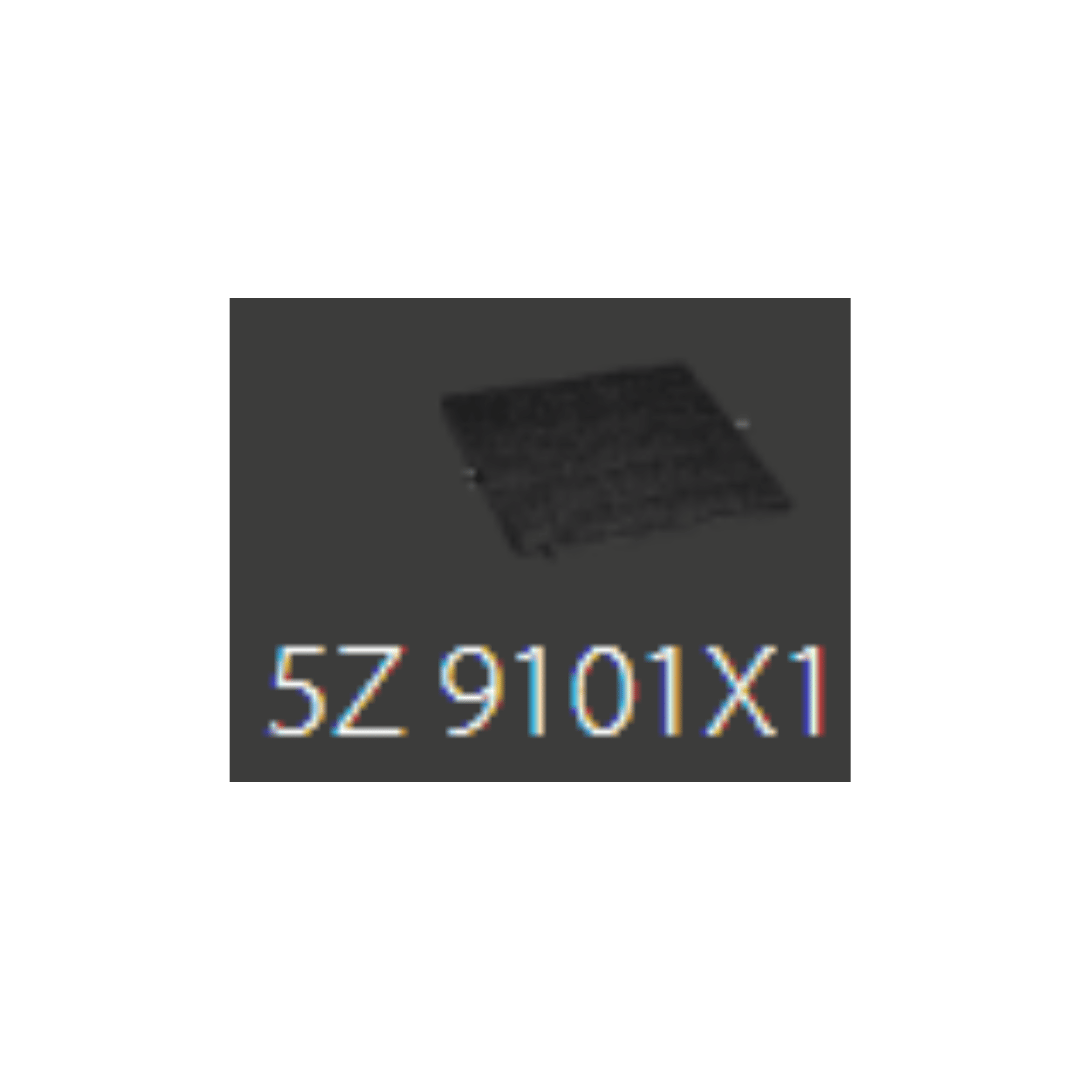

• 5Z 9102X1: activated charcoal filter
• Remote control

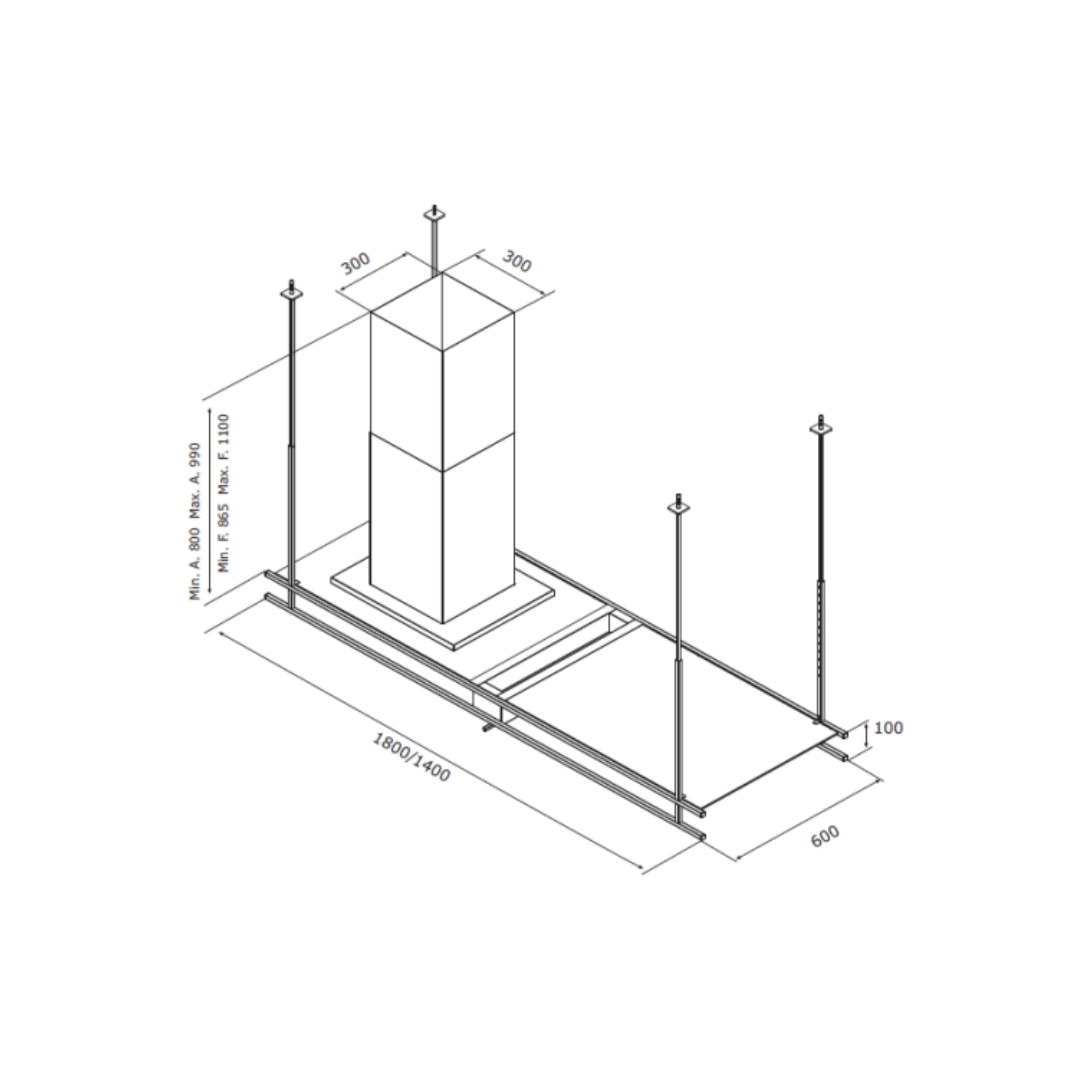

• Dimensions :
• Appliance dimensions, extraction: 90.0 - 109.0 x 140.0 x 60.0 cm

  Appliance dimensions, circulation: 96.5 - 120.0 x 140.0 x 60.0 cm

Warranty: 5 Years ( 5 Years on Motor and for all other Electrical & Mechanical Parts 2 years only)

Additional Information

• Country of Origin: Germany
• Manufacturer: Blaupunkt
• Imported by: Hettich India Private Limited - 302, Durolite House, Opp. SAB TV, New Link Road, Andheri ( West ) Mumbai - 400053
