Technical Details

• Brand: Blaupunkt By Hettich
• Model No.: 5DL 69654
• Output, consumption
• Voltage: 220 240 V
• Total connected load: 276 W

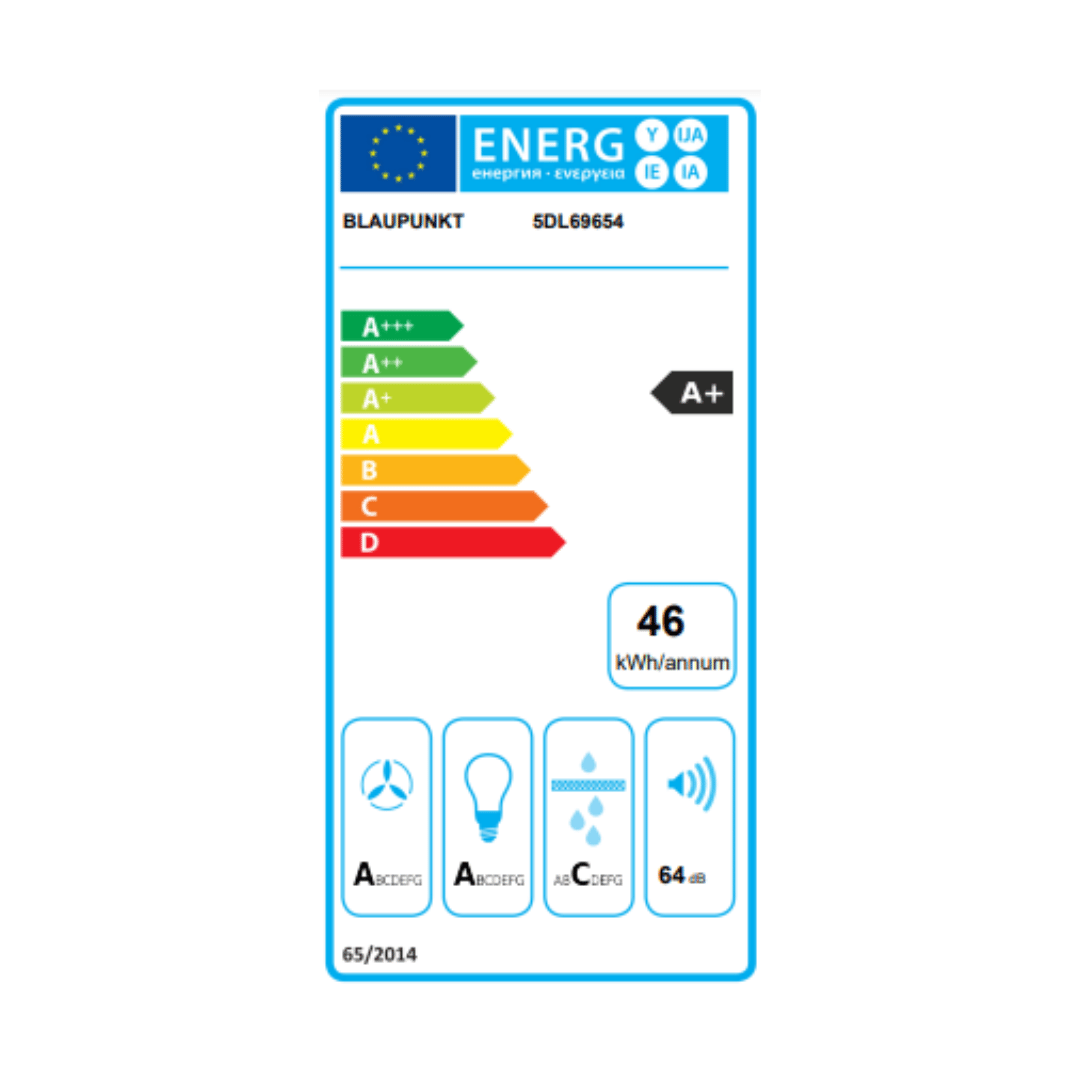

• Energy efficiency class: A+*
• Average power consumption: 46.4 kWh / year*
• Fan efficiency class: A*
• Light efficiency class: A*
• Grease filter efficiency class: C*
• Noise min. / max. Normal level: 52 / 64 dB*
• Fan output max. Normal level / Intensive level*:
• In extraction mode 630 m3 / h / 790 m3 / h
• In circulation mode 385 m3 / h / 430 m3 / h
• According to EU Regulation no. 65 / 2014 / fan
• power according to EN 61591
• Design, comfort
• Black glass screen with Dark Steel front
• With gas pressure damper
• For wall installation above cooking zones
• Optional extraction or circulation mode (an
• activated carbon filter required for circulation
• mode)
• Electronic control
• 4-level fan power (3 power levels + 1 intensive
• level) controllable through Multi Control
• Filter saturation display
• Powerful and quiet blower
• High, fine-tunable fan power
• Edge suction
• Uniform, bright lighting with 2 脳 2.7 W LED
• lamps
• Illuminance: 154 lux
• Colour temperature: 4,000 K preset
• Equipment / comfort
• Fan power 3-level +Intensiv level
• Touch Control
• Even, bright lighting with 2 x 5,4 W LED lamps
• Illuminance: 154 lux
• Color temperature: 4000 K
• Metal grease filter, dishwasher safe
• Multicontrol: yes
• Follow-up function:no
• Filter change reminder: yes

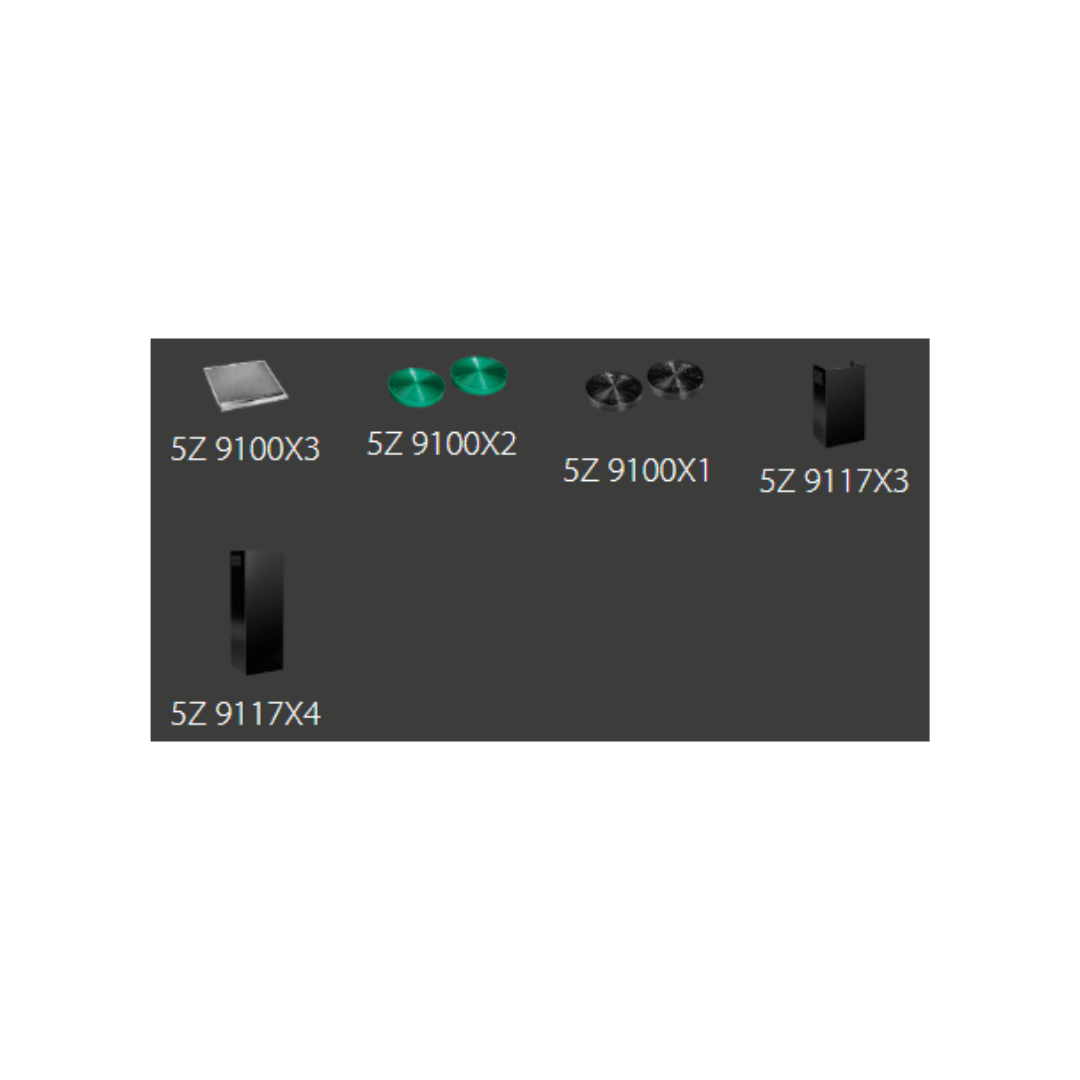

• Optional accessories:
• Charcoal filter Regenerative 5Z9100X1 EG18881
• Charcoal filter 5Z9100X2 EG18884
• Shaft lengthening BK 500 5Z9117X3 EG18887
• Shaft lengthening BK 900 mm 5Z9117X4
• EG18888

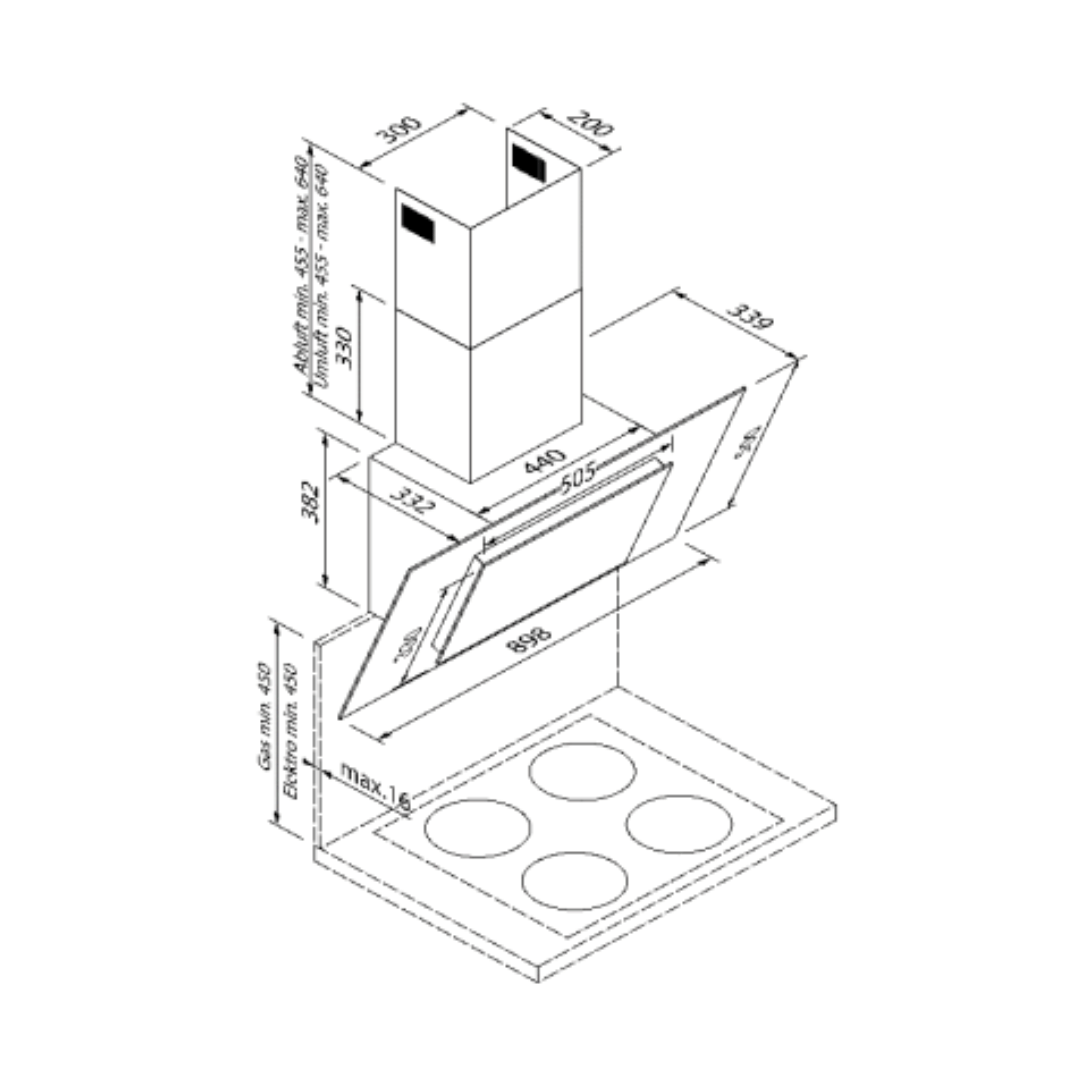

• Dimensions H 脳 W 脳 D
• Appliance dimensions, extraction: 71.2 102.2
• 脳 90.0 脳 34.0 cm
• Appliance dimensions, circulation: 83.7 102.2
• 脳 90.0 脳 34.0 cm

Additional Information

• Country of Origin: Germany
• Manufacturer: Blaupunkt
• Imported by: Hettich India Private Limited - 302, Durolite House, Opp. SAB TV, New Link Road, Andheri ( West ) Mumbai - 400053
