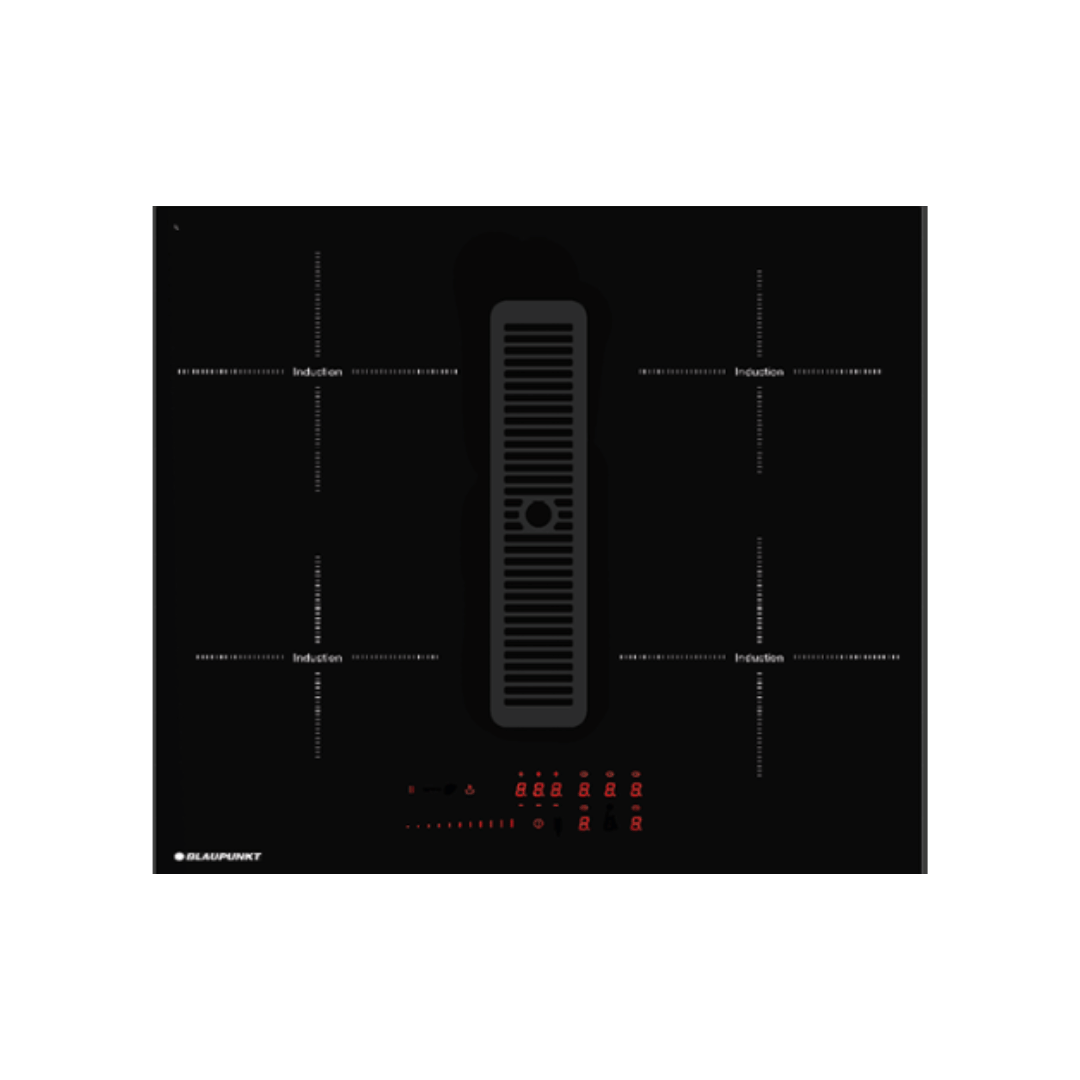

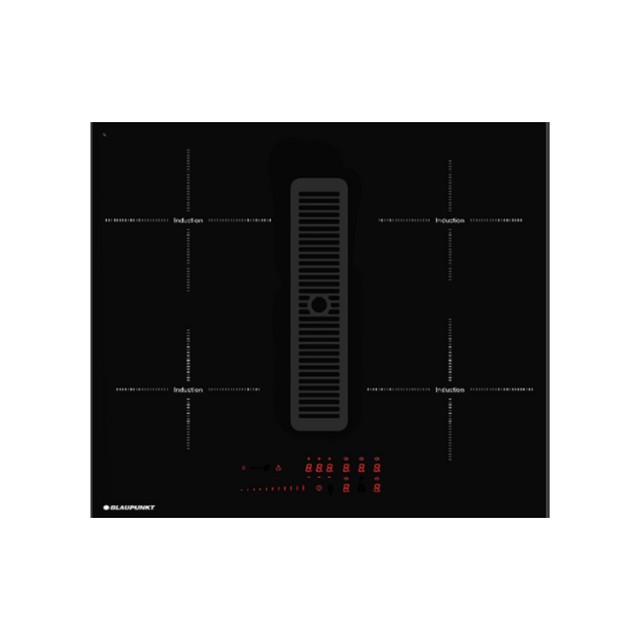

Blaupunkt By Hettich Stand-Alone Hob, Combi Induction With Integrated Extractor Fan 5IX 60290, Electronic Control In 11 Power Levels, with Fan Motor Integrated into the Hob, Touch Control

Technical Details

• Brand: Blaupunkt By Hettich

• Model No.: 5IX 60290

• Output, consumption

• Hob

• Voltage: 220 - 240 V

• Total connected load: 7,4 kW

• 4 induction cooking zones with booster:

• 2 cooking zones Ø 16 cm, 1,4 kW (1,85 kW)

• 2 cooking zones Ø 17,5 cm, 1,4 kW (2,1 kW)

• Extractor fan

• Voltage: 220 240 V

• Total connected load: 165 W

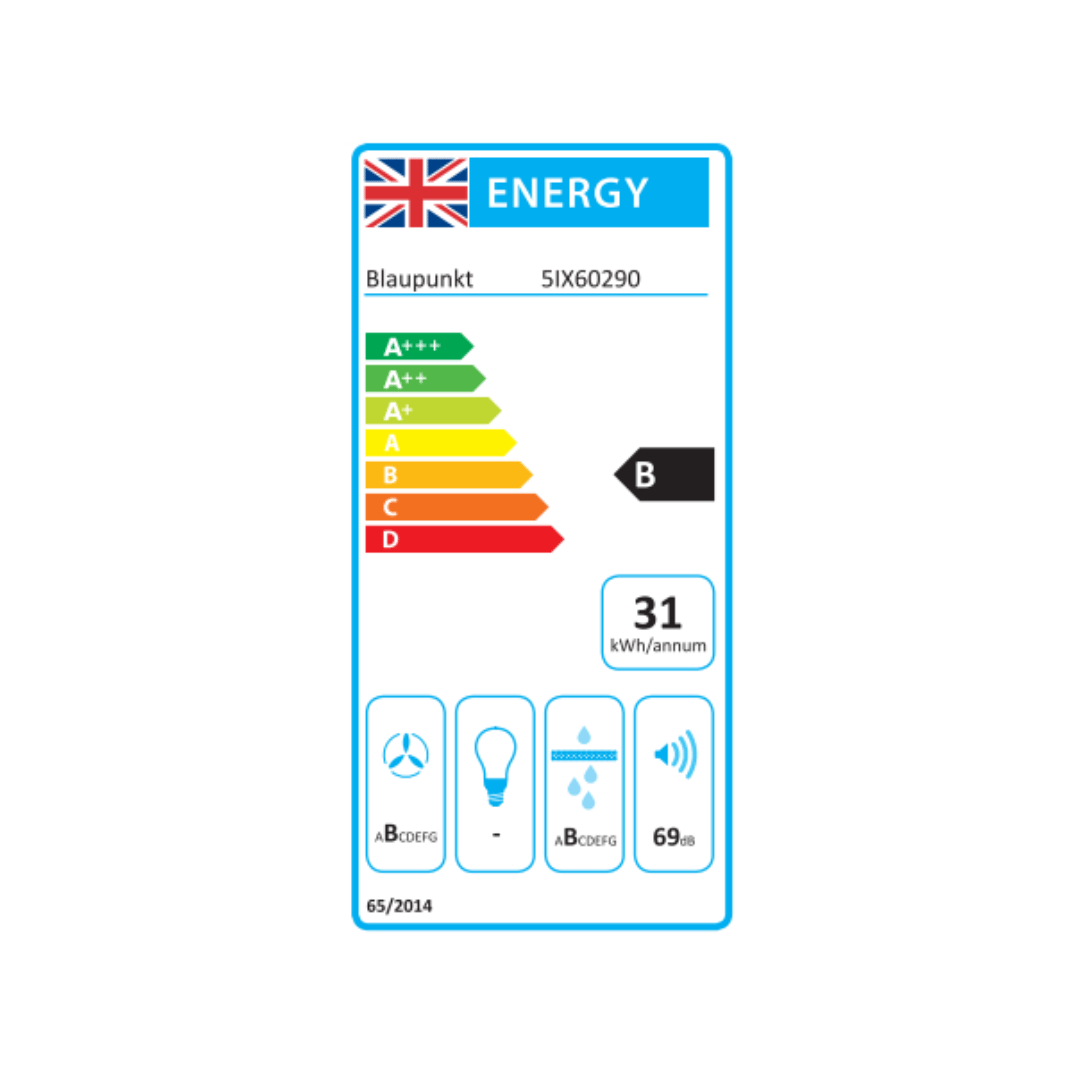

• Energy efficiency class: B

• average power consumption: 33,2 kWh / year

• Fan efficiency class: B

• Grease filter efficiency class: B

• Noise min. / max. Normal level / Intensive level:

• Min. 34 dB(A) Max. 69 dB(A) Max. 72 dB(A)

• Fan output max. Normal level / Intensive level*:

• In extraction mode 424 m3 / h / 441 m3 / h

• In circulation mode 339 m3 / h / 353 m3 / h

• According to EU Regulation no. 65 / 2014 / fan

• power according to EN 61591

• Design, comfort

• Hob

• Frameless

• Multi Control

• Smart Slider

• Touch Control

• Boost function for all induction cooking zones

• Electronic control in 11 power levels

• Digital display of cooking levels in red

• Residual heat display for each cooking zone

• Pot detection

• Child protection

• Timer simultaneously adjustable for each

• cooking zone

• Countdown function

• Quick start function

• Recall function Repeat the last settings

• Automatic safety switch-off

• Overflow detection

• Power management

• Flush-mounted installation possible

• Quick assembly system

• Extractor fan

• With fan motor integrated into the hob

• Suitable for installation in a kitchenette or

• kitchen island

• Optional extraction or circulation mode (carbon

• filter required for circulation mode)

• 10-level fan output controllable via Touch Control

• 9 power levels + 1 intensive level

• Intensive level with automatic reset for

• extraction mode

• Automatic blower overrun

• Metal grease filter and carbon filter saturation

• indication by LED control lamp

• The device automatically blocks after 30 hours of

• operation for filter cleaning

• Powerful and quiet blower

• The ventilation system is activated automatically

• when a cooking zone is in use

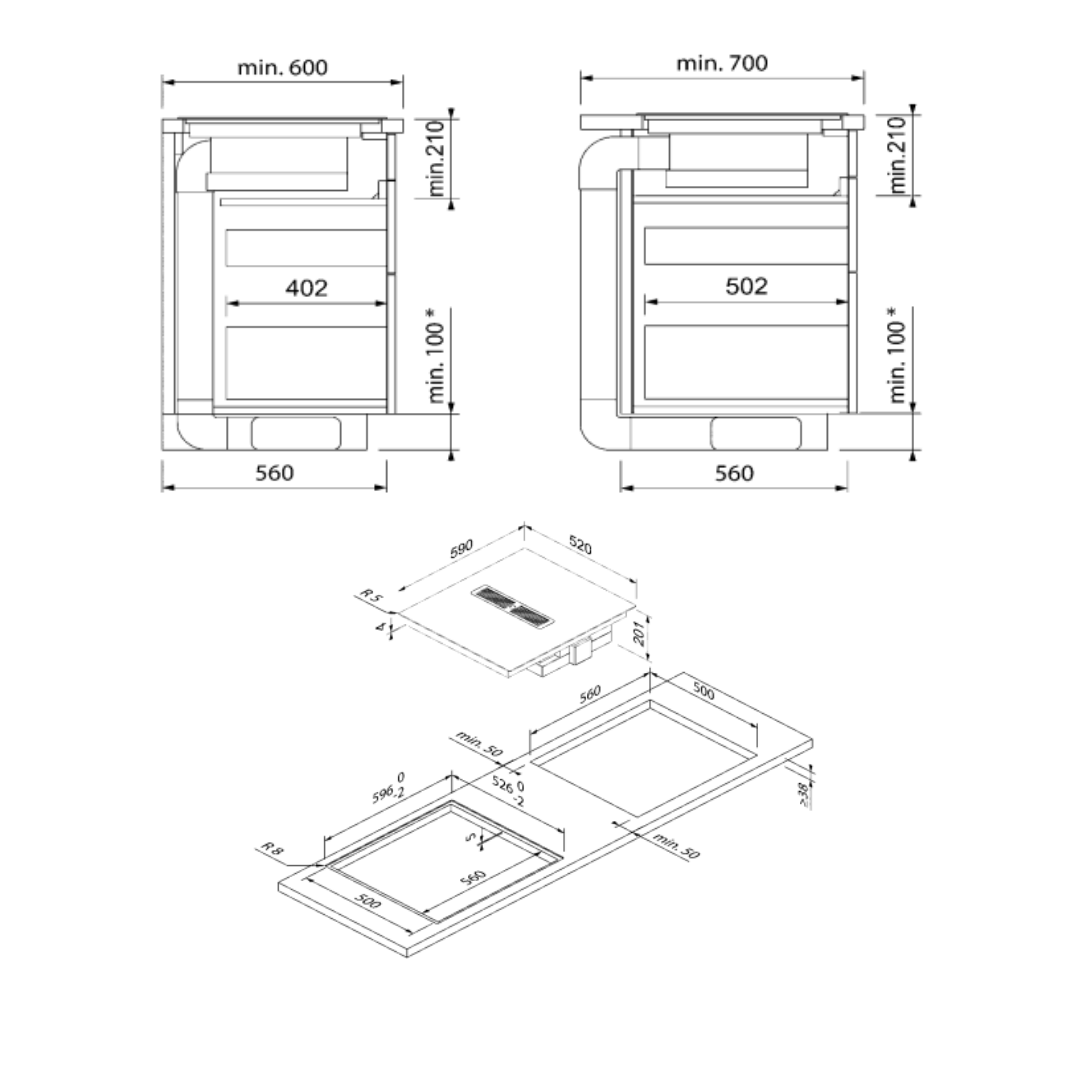

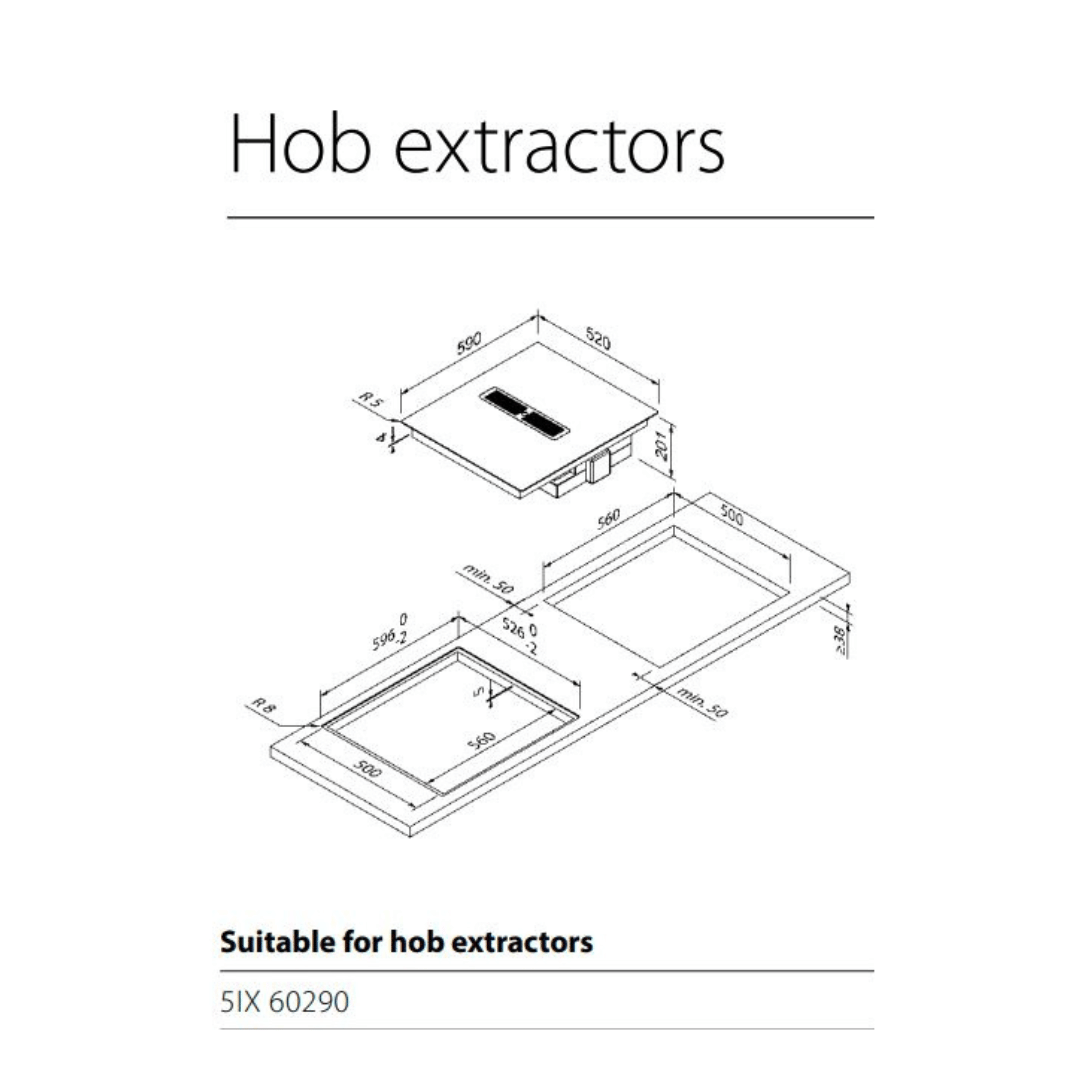

• Dimensions H W D

• Appliance dimensions: 20.1 59.0 52.0 cm

• Installation dimensions: 19.7 59.0 50.0 cm

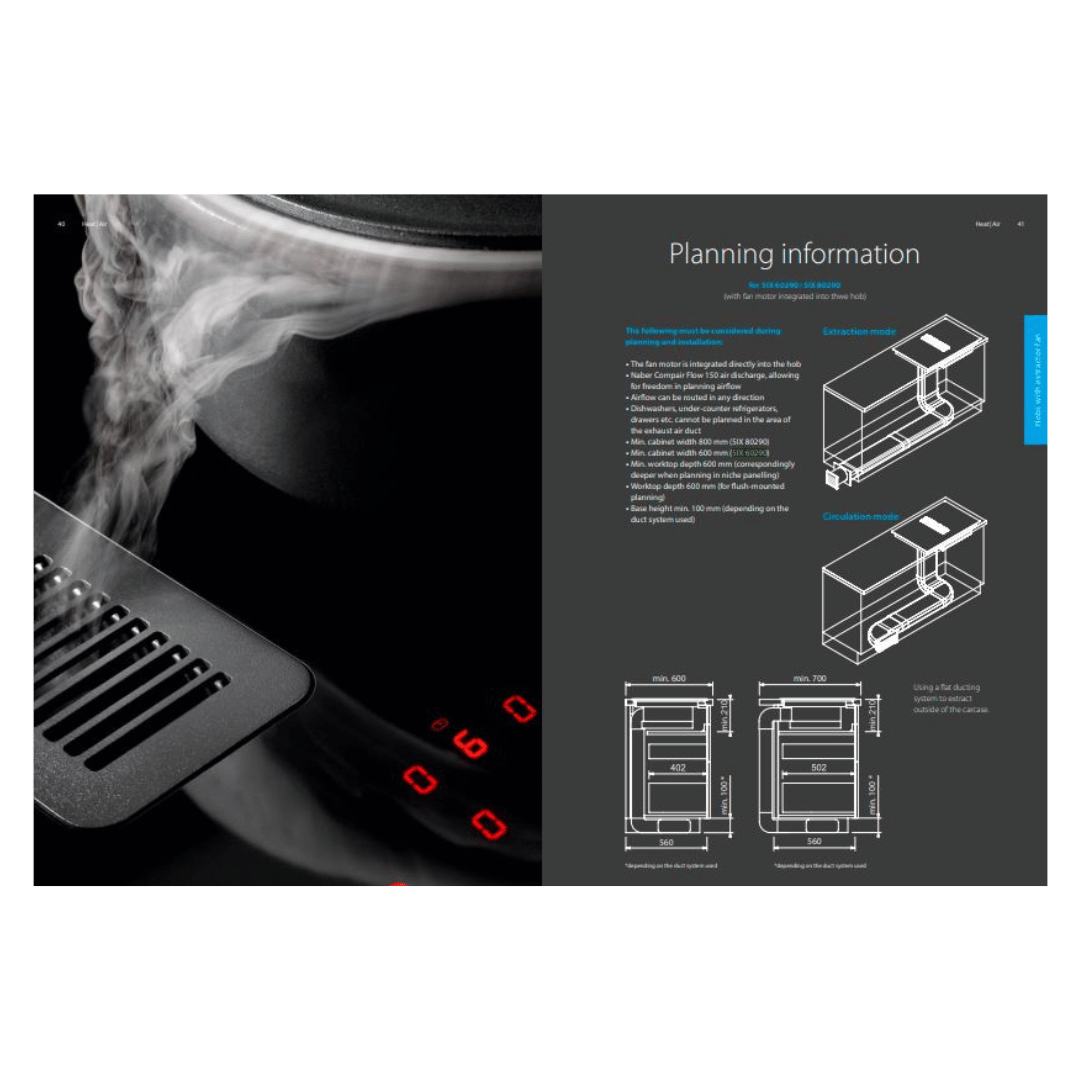

• Planning information:

• The fan motor is integrated directly into the hob

• Naber Compair Flow 150 air discharge, allowing

• for freedom in planning airflow

• Airflow can be routed in any direction

• Dishwashers, under-counter refrigerators,

• drawers etc. cannot be planned in the area of the

• exhaust air duct

• Min. cabinet width 800 mm (5IX 80290)

• Min. cabinet width 600 mm (5IX 60290)

• Min. worktop depth 600 mm (correspondingly

• deeper when planning in niche panelling)

• Worktop depth 600 mm (for flush-mounted

• planning)

• Base height min. 100 mm (depending on the

• duct system used)

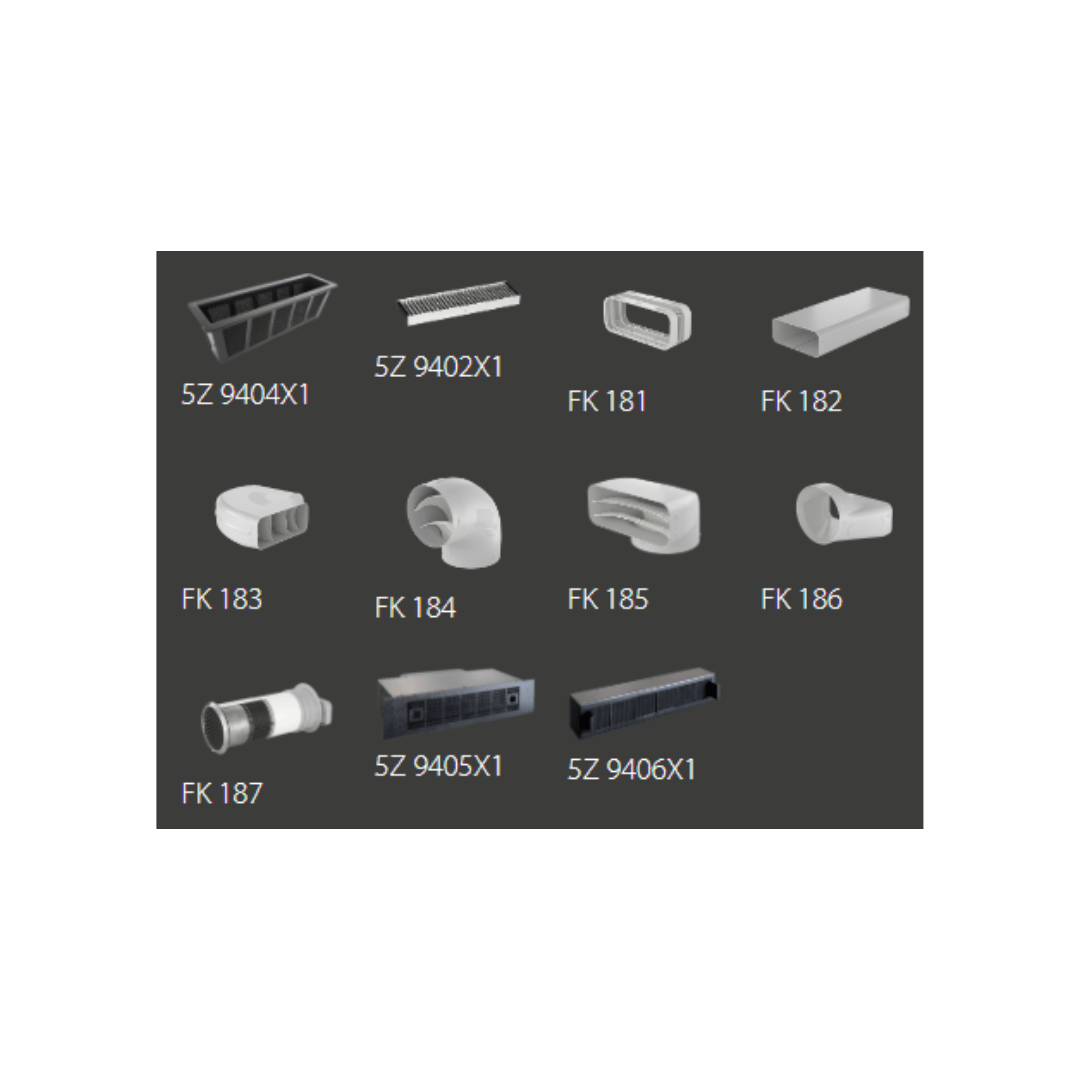

• Special accessories:

• 5Z9402X1 - Charcoal filter

• 5Z9404X1 - Grease filter with Meshtissue

• (Grease

• filter efficiency class A)

Additional Information

• Country of Origin: Germany

• Manufacturer: Blaupunkt

• Imported by: Hettich India Private Limited - 302, Durolite House, Opp. SAB TV, New Link Road, Andheri ( West ) Mumbai - 400053
