No matter what type of kitchen you have, we offer the optimum air volume for kitchens of all sizes. Air should be exchanged 6 to 12 times an hour to ensure a consistently pleasant ambience. To do so, the air delivery volume or power of the cooker hood must be appropriate to the room volume.
Design

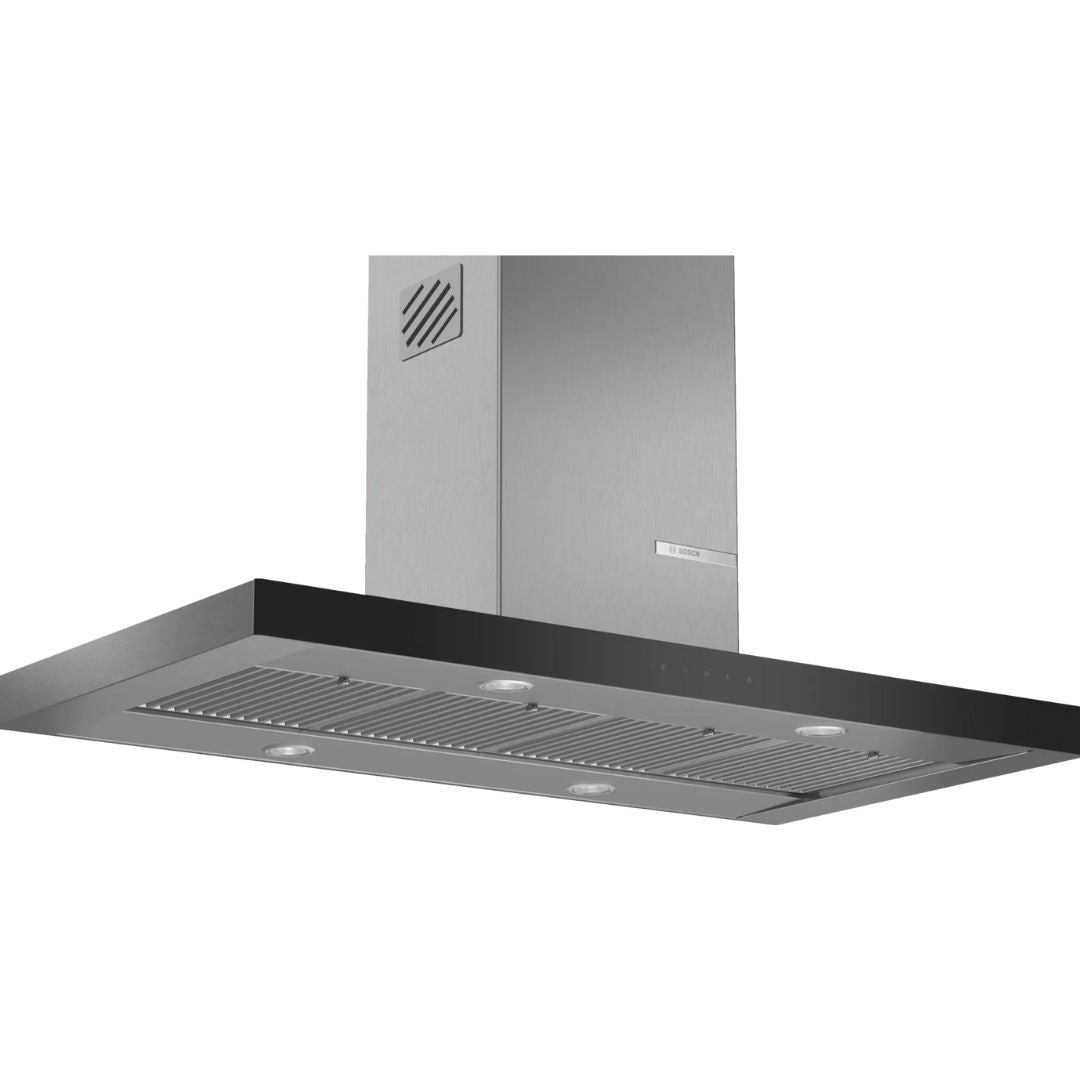

- Box design for ceiling mounting
- Brushed stainless steel and glass panel

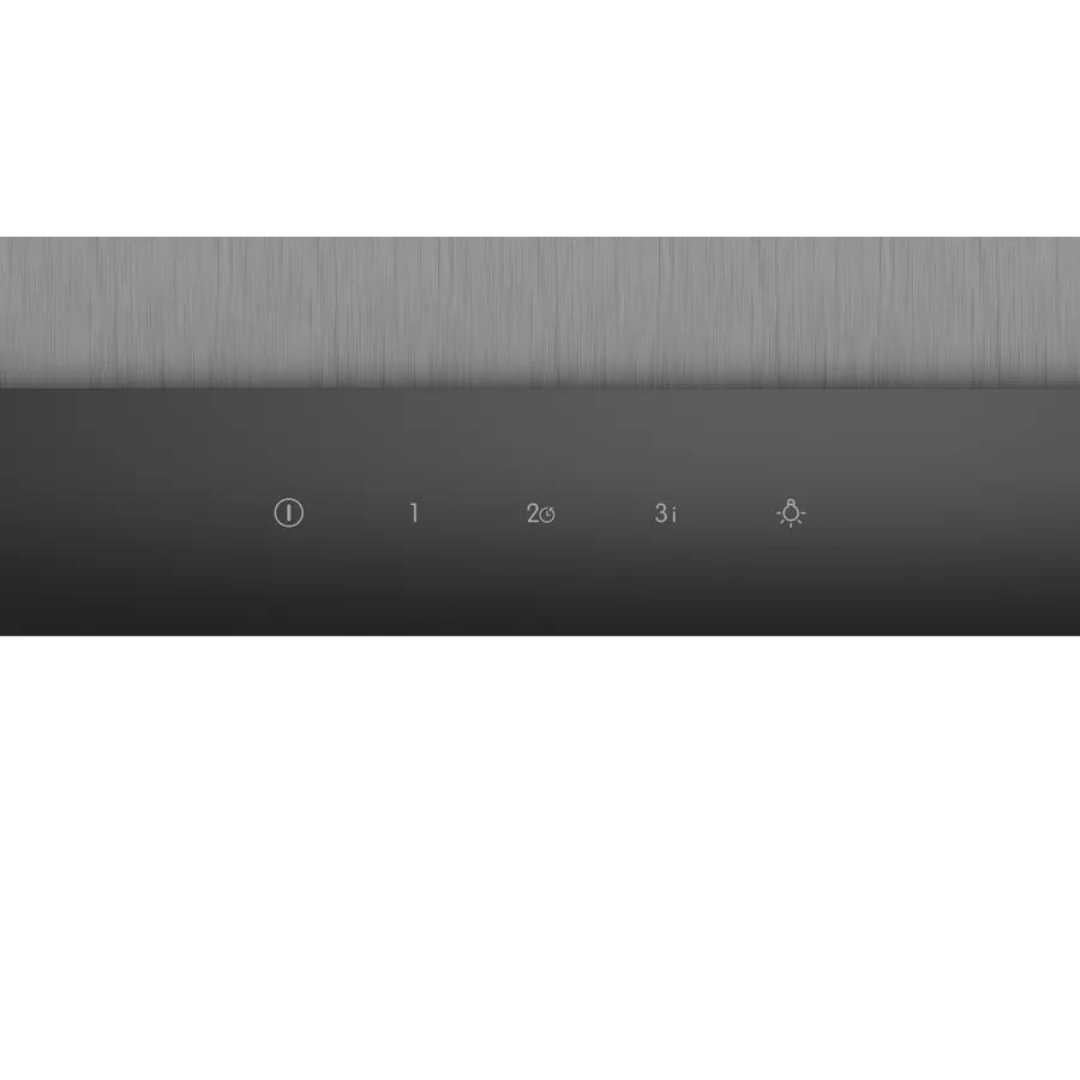

- Electronic touch control on black full-width glass panel, on one side
- Chromed logo strip on the chimney
- Sleek white LED indication of settings
Key Functions
- Maximum blower performance: 745 m3/h (freeblowing)
- Noise level from to 55 dB to 77 dB
- 4 fan speed settings (three plus intense)
Comfort
- 4 x 4 W LED lighting
- Intensive speed automatically switches back to the previous setting after 10 minutes

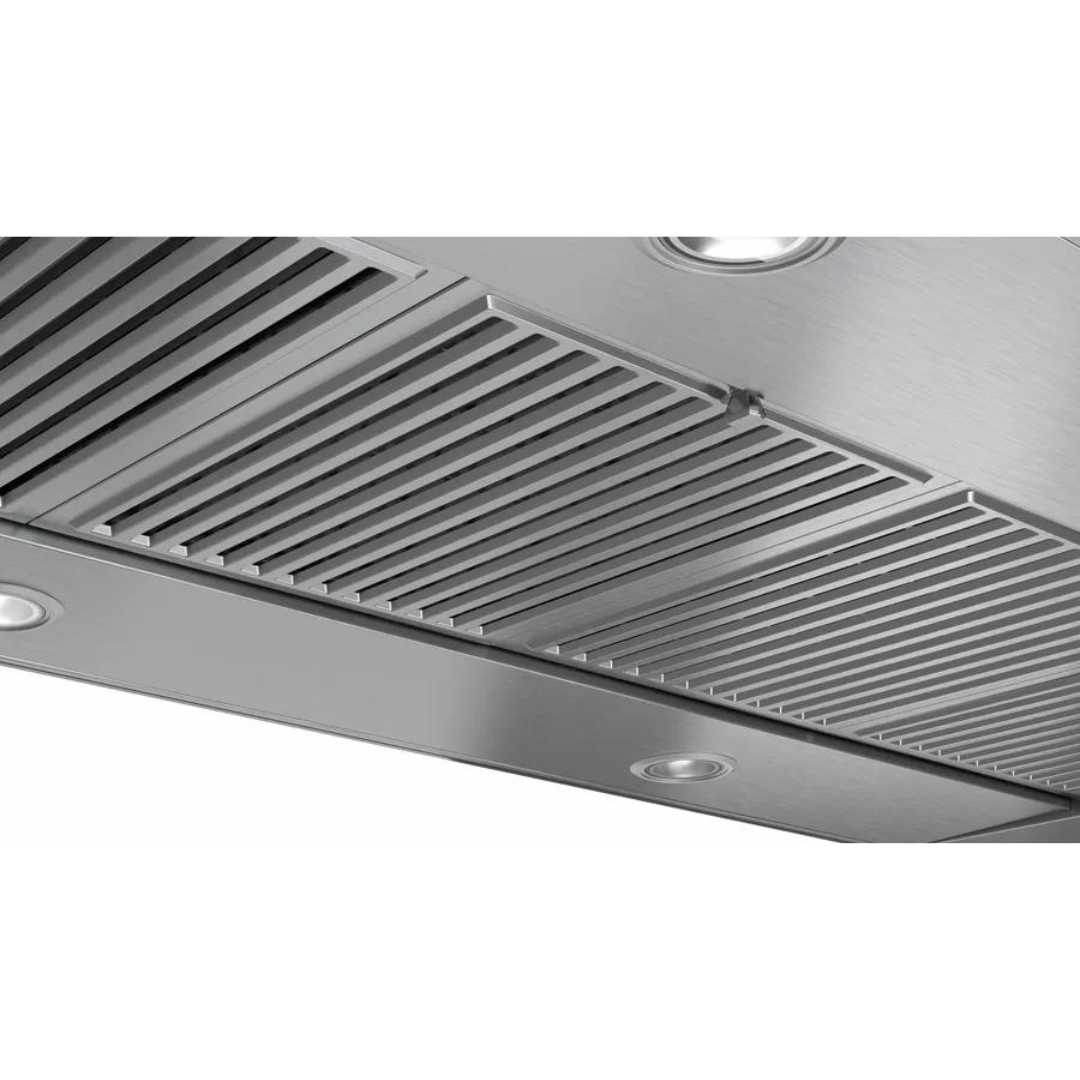

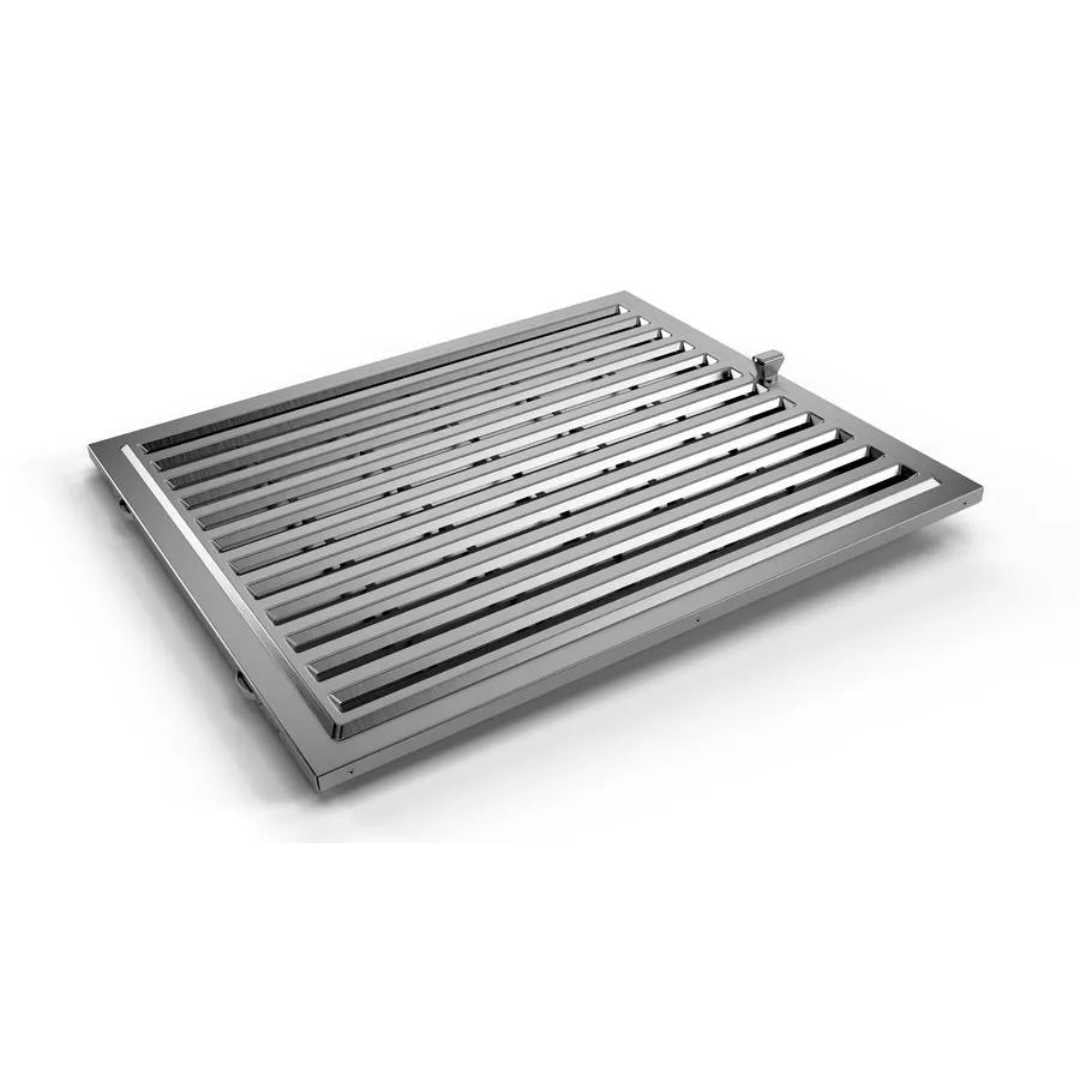

- 4 PC, high-grade stainless steel baffle filters
Technical information
- For ceiling mounting only
- Suitable for ducted or recirculating operation
-

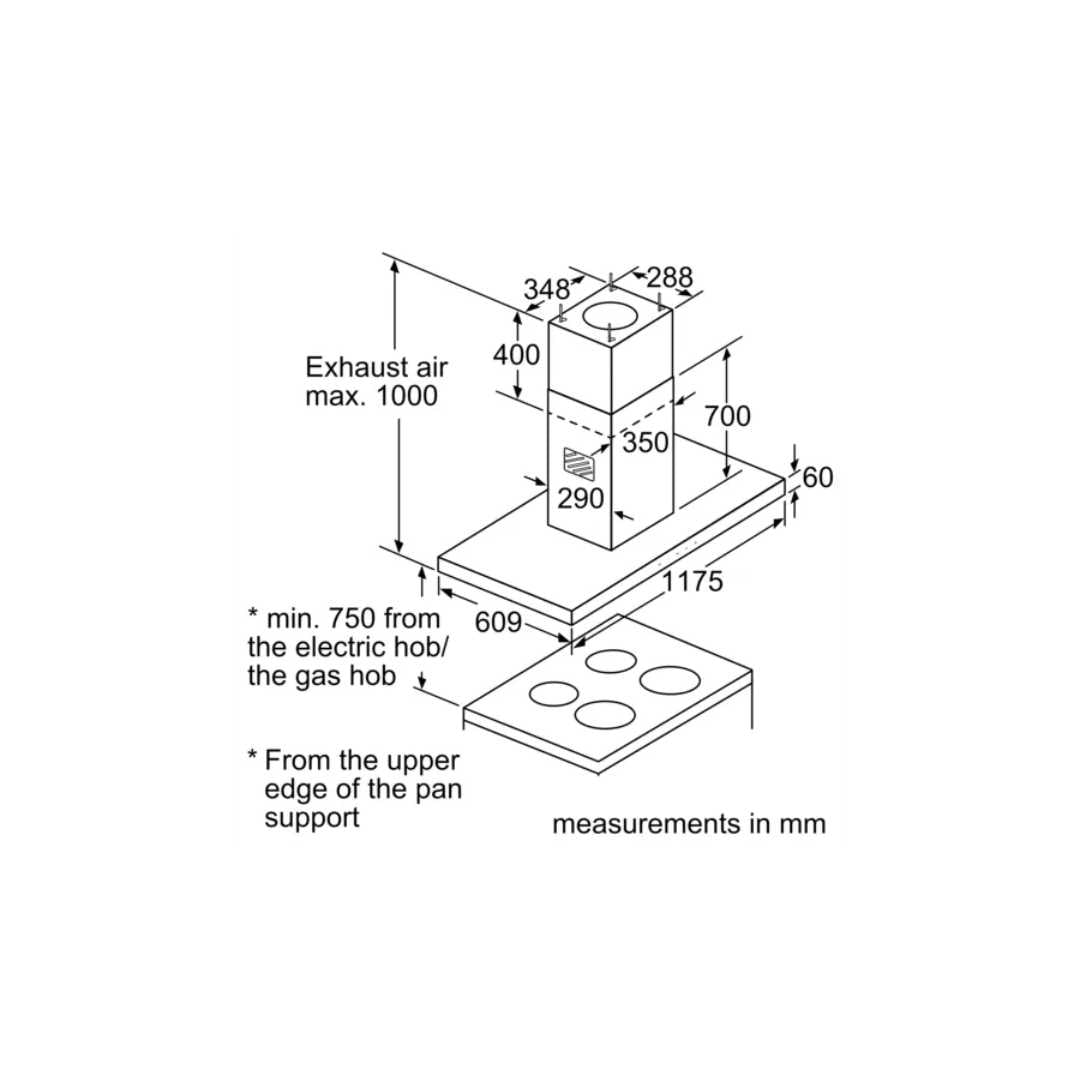

Dimensions of the product, with chimney (if exists)
(HxWxD mm): 1000 x 1175 x 610 - Minimum clearance to gas/electric cook top: 750 mm
- Length electrical supply cord: 150 cm
- Ducting connection: 150mm/120mm diameter
General
| Width | 120 cm |
|---|---|
| Depth of the product | 610 mm |
| Construction type | Built-in |
| Operating Mode | Convertible |
| Type of control setting and signalling devices | touch control |
Construction type
| Diameter of air outlet (mm) | 120 / 150 mm |
|---|---|
| Colour | Stainless Steel |
| Grease filter material | Washable stainless steel |

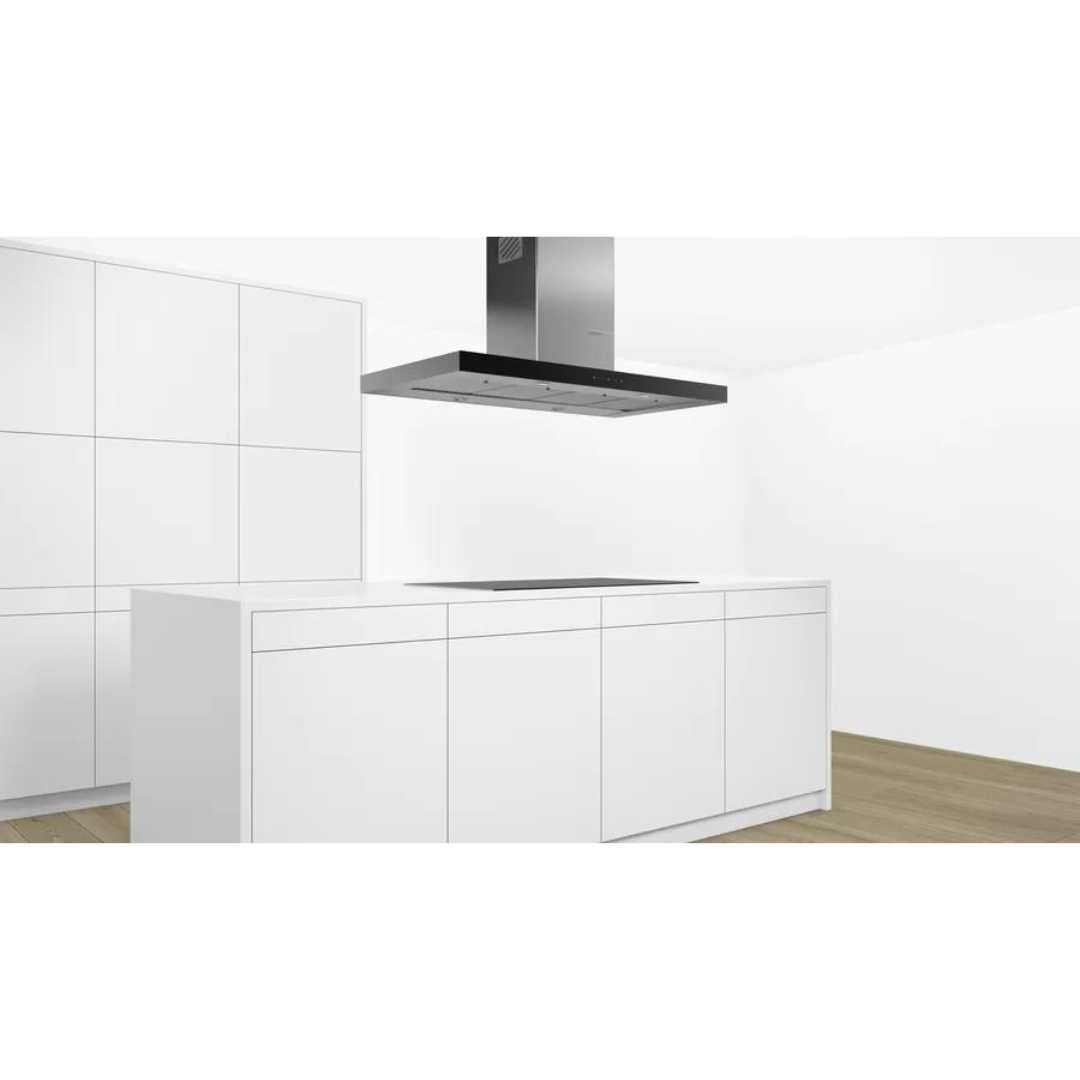

| Installation typology | Island |
| Material of the body | Stainless steel |
| Motor location | Integrated motor in hood chimney |
| Number of motors | 1 |
| Operating Mode | Convertible |
| Typology | Chimney |
Connection
| Frequency (Hz) | 50 Hz |
|---|---|
| Total power of the lamps (W) | 1 W |
| Total power of the motors (W) | 350 W |
| Voltage (V) | 230 V |
