Technical Data :

• Brand: Bosch
• Model:HBF532BA0I
• Color / Material Front: Black
• Built-in / Free-standing: Built-in
• Gross weight: 33.1 kg
• Color / Material Front: Black
• Built-in / Free-standing: Built-in
• Integrated Cleaning system: catalytic partial, Hydrolytic
• Min. required niche size for installation (HxWxD): 575-597 x
• 560-568 x 550 mm
• Dimensions : 595 x 594 x 548 mm
• Dimensions of the packed product (HxWxD): 665 x 685 x 655mm
• Control Panel Material: Glass
• Door Material: Glass
• Net weight: 31.0 kg
• Usable volume of cavity: 66 l
• Cooking method: Conventional heat, Full width variable grill,
• Hot Air, Hotair gentle, Hot air grilling
• First cavity material: Other
• Number of interior lights: 1
• Length of electrical supply cord: 100.0 cm
• Interior Lights - cavity 1: 1
• Pull-out system: Accessory
• Clock function: Alarm, Off, On

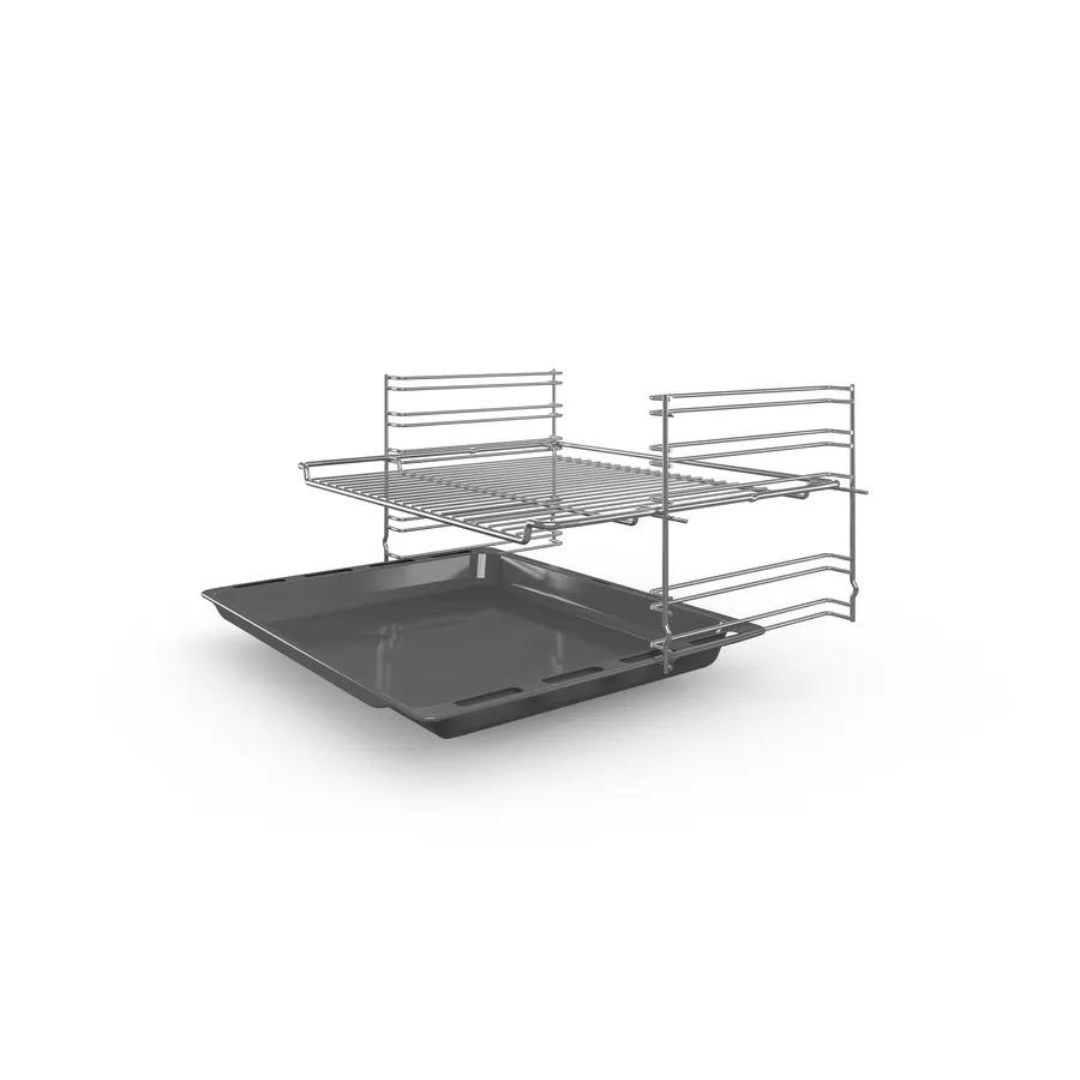

• Included accessories : 1 x combination grid, 1 x universal pan
• Broil Element Wattages cavity 1: 2800 W
• Energy consumption per cycle conventional (2010/30/EC) : 0.98 kWh/cycle
• Energy consumption per cycle forced air convection (2010/30/
• EC): 0.79 kWh/cycle
• Energy efficiency index (2010/30/EC): 95.2 %
• Connection Rating: 3300 W
• Fuse protection: 16 A
• Voltage: 220-240 V
• Frequency: 50-60 Hz
• Plug type: India plug (16 Ampere)
• Color / Material Front: Black
• Energy input: Electric
• Required cutout/niche size for installation (in) : x x
• Included accessories : 1 x combination grid, 1 x universal pan
• Heating Functions
• Oven with 5heating methods:
• Hot Air
• Conventional heat Hot air grilling
• Temperature range 50 °C - 275 °C
• Cavity volume: 66 l
• Hook-in racks/rails
• Easy-fit shelf support rails with electronic link
• Design
• Color display: red
• Ecolyse features: back panel
• hydrolyze program Comfort
• LED display control (red)
• electronic clock with LED display
• Rapid heating-up
• Rapid heating-up: manual
• Integral cooling fan
• Accessories
• 1 x combination grid, 1 x universal pan
• Connecting cable: 100 cm
• Child lock
• Technical Information
• Length of mains cable: 100 cm
• Nominal voltage: 220 - 240 V
• Total connected load electric: 3.3 KW
• Energy efficiency rating (acc. EU Nr. 65/2014): A(at a range of
• energy efficiency classes from A+++ to D)
• Energy consumption per cycle in conventional mode:0.98 kWh
• Energy consumption per cycle in fan-forced convection
• mode:0.79 kWh
• Number of cavities: 1 Heat source: electrical Cavity volume:66l
• Energy efficiency rating (acc. EU Nr. 65/2014): A(at a range of
• energy efficiency classes from A+++ to D)
• Energy consumption per cycle in conventional mode:0.98 kWh
• Energy consumption per cycle in fan-forced convection
• mode:0.79 kWh
• Number of cavities: 1 Heat source: electrical Cavity volume:66

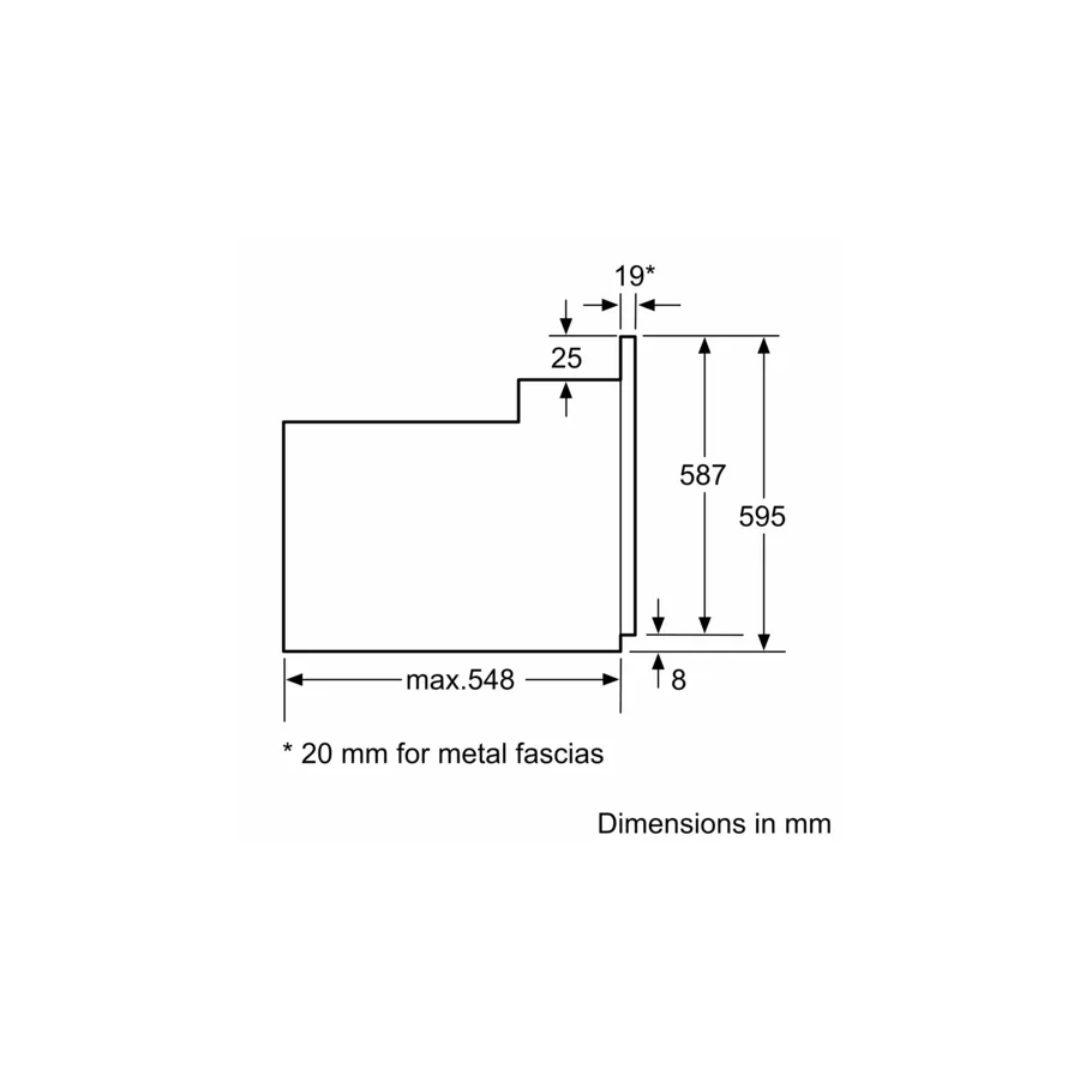

• Dimensions: Appliance dimension (hxwxd): 595 mm x 594 mm x 548 mm
• Please reference the built-in dimensions provided in the
  installation drawing

Additional Information

• Manufacturer: Bosch, BSH Household Appliances Manufacturing Pvt Ltd.
• Dimensions of the packed product: 26.18 x 25.78 x 26.96
• Net weight: 68.000 lbs
• Gross weight: 73.000 lbs
• Length of electrical supply cord: 100.0 cm
• Net weight: 31.0 kg
