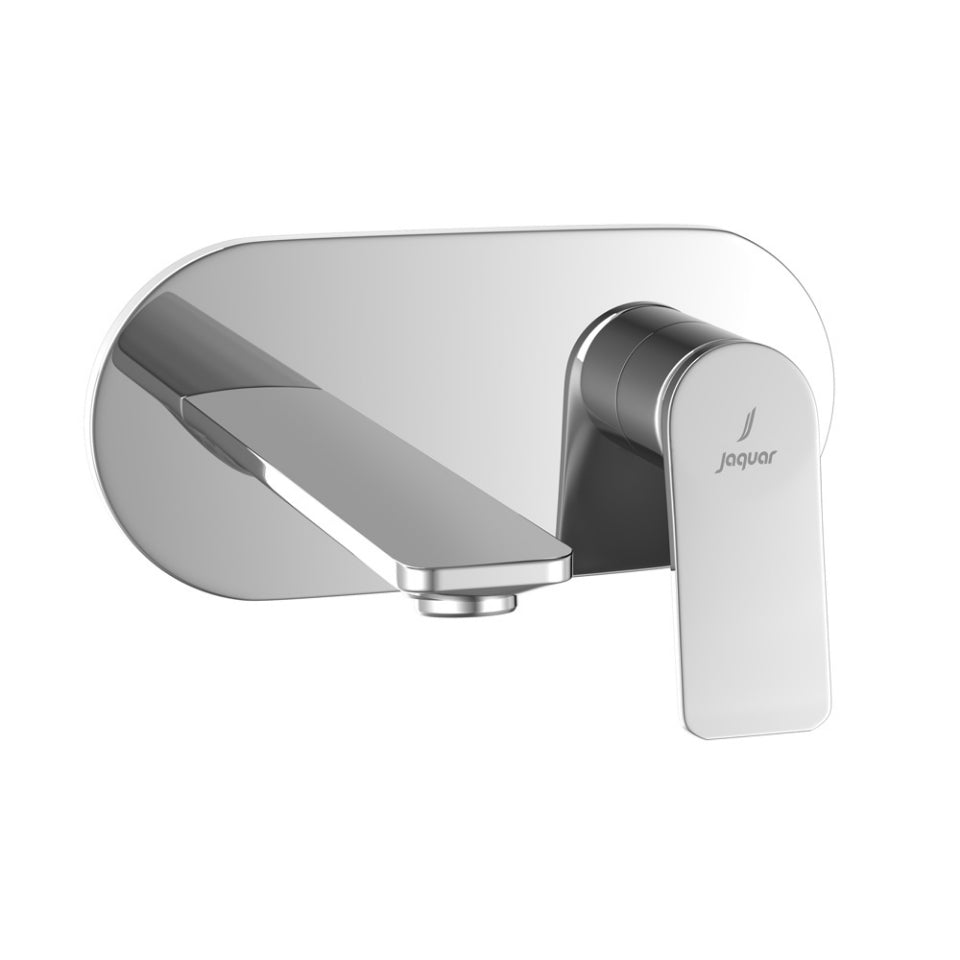

Jaquar Exposed Part Kit of Single Lever Basin Mixer Wall Mounted - Chrome LAG-CHR-91233NK

Jaquar Exposed Part Kit of Single Lever Basin Mixer Wall Mounted - Chrome LAG-CHR-91233NK

Product Description:

The Jaquar Exposed Part Kit of Single Lever Basin Mixer Wall Mounted – LAG‑CHR‑91233NK is an elegant and precision-engineered trim kit from the Jaquar Laguna range. This kit is designed for modern wall-mounted basin mixer installations and includes key visible components—operating lever, cartridge sleeve, wall flange, nipple and spout—intended to be paired with the concealed in-wall body (model ‎ALD-233N or ALD-235N) for a sleek finish.

Finished in polished chrome, it offers a refined look that suits contemporary bathrooms while maintaining corrosion-resistance and durability. According to the technical data, it delivers a flow rate of approximately 15.91 litres per minute at 3 bar (factory-standard setting) and can be customized via flow-regulator options (1.3 / 3.8 / 6.0 / 8.0 L/min) to suit specific installation requirements. Recommended operating water pressure is 0.5 bar to 5.0 bar.

Key Features:

• Model Code: LAG-CHR-91233NK – exposed part kit for wall-mounted basin mixer.

• Finish: Chrome – polished for modern styling and robust finish.

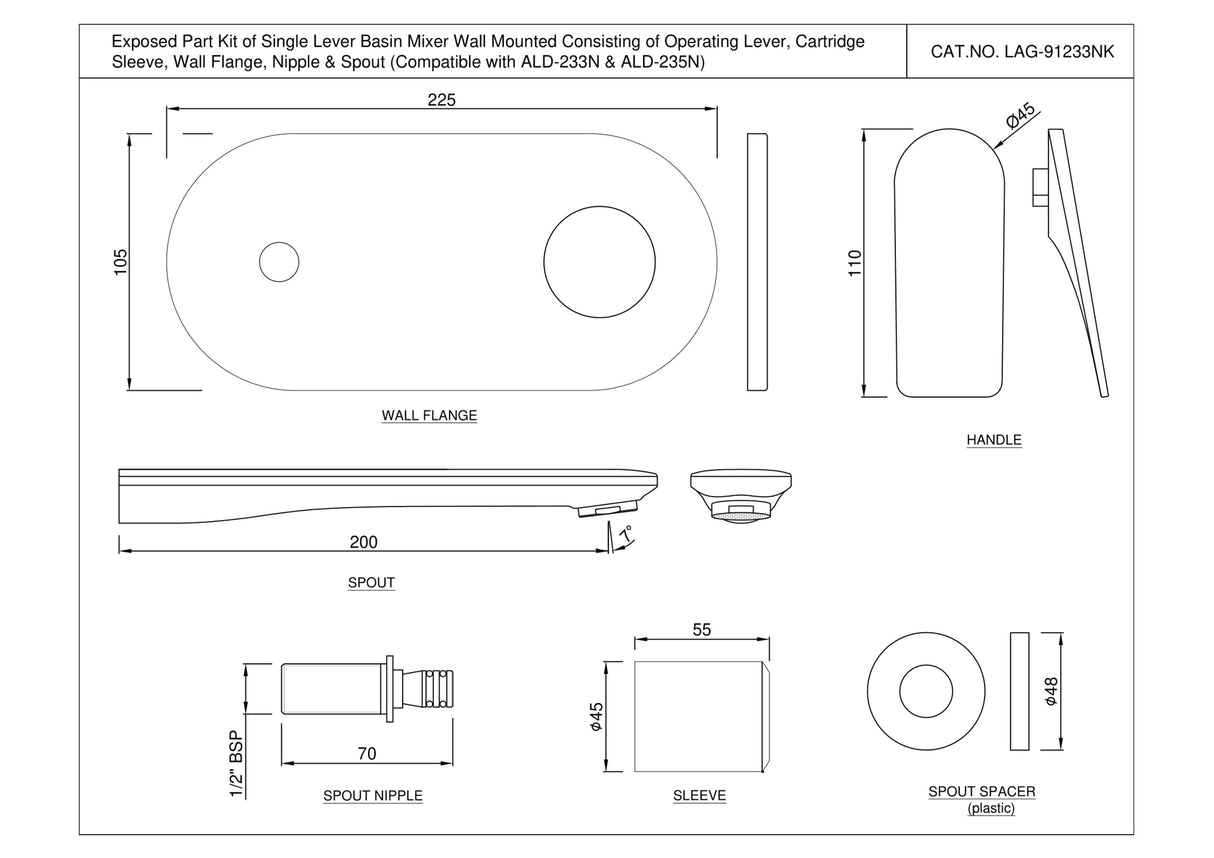

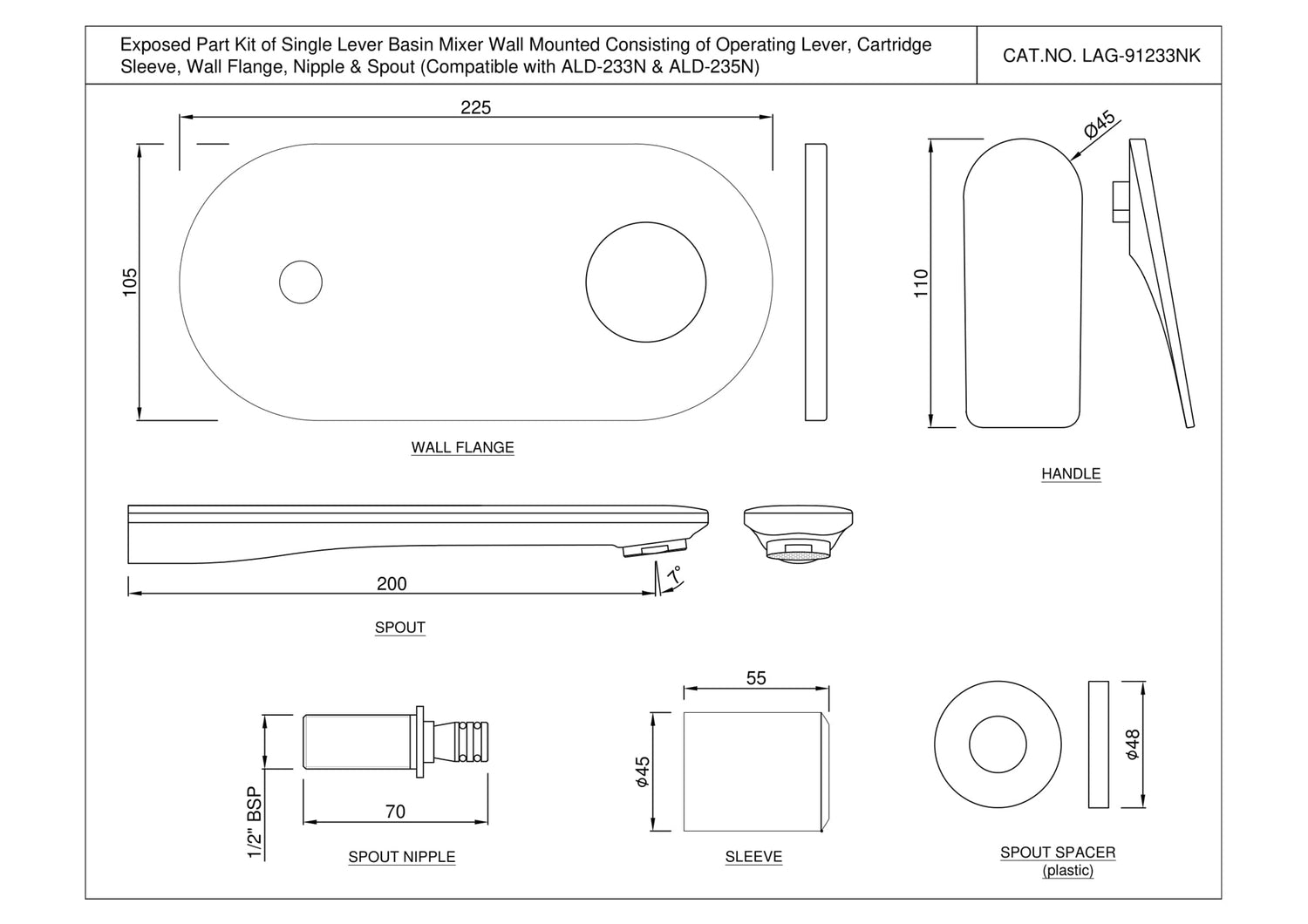

• Kit includes: Operating lever, cartridge sleeve, wall flange, nipple & spout.

• Compatible with concealed valve body: ALD-233N (and ALD-235N in some variants).

• Factory-flow: ~15.91 L/min @ 3 bar pressure. Flow-regulator variants available for flow control.

• Operating Pressure Range: Approx. 0.5 bar to 5 bar.

• Material & finish spec: Brass body materials (IS standard), Nickel plating ~10 µm + Chromium ~0.3 µm; finish salt-spray validated >500 hours.

Ideal For:
– Wall-mounted wash basin installations seeking a clean, minimal visible hardware solution.
– Designer bathrooms where the fixture is part of a concealed plumbing setup (valve body in wall, only trim visible).
– Situations where the flow-rate needs customization (via flow regulators) or where pressure control is critical.
